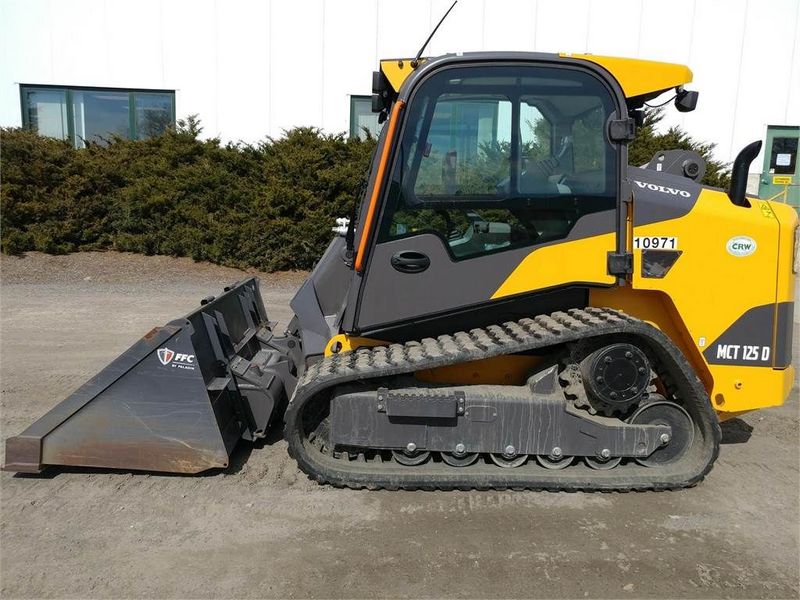

Volvo MCT125D
Browse All Volvo or Skid Steer Loader Models
Contents:
Dimensions
| Ground Clearance | 9.06 in (230 mm) |
| Wheelbase | 3.52 ft in (1070 mm) |
| Dump Angle | 42 degrees |
| Dump Height | 7.49 ft in (2280 mm) |
| Dump Reach | 35.44 in (900 mm) |
| Height To Hinge Pin | 125.2 in (3180 mm) |
| Angle Of Departure | 29 degrees |
| Overall Length (L/Bucket) | 9.85 ft in (3000 mm) |
| Overall Length (W/Bucket) | 12.47 ft in (3800 mm) |
| Turning Radius | 5.78 ft in (1760 mm) |
| Turning Radius Front L/Bucket | 5.58 ft in (1700 mm) |
| Turning Radius Front W/Bucket | 7.55 ft in (2300 mm) |
| Overall Height | 6.83 ft in (2080 mm) |
| Attachment Roll Back Angle | 30 degrees |
Speeds
| Single Speed | 5.7 mph (9.2 km/h) |
Engine
| Starter | 5.7 hp (4.2 kw) |
| Gross Horsepower – Sae J1995 | 55 hp (41.1 kw) |
| Battery | 12 - 109 (V - Ah) |
| Number Of Cylinders | 4 |
| Engine Model | TCAE-55 |
| Net Power | 54.1 hp (40.4 kw) |
| Max Torque | 295.1 lb ft (400 Nm) |
| Aspiration | Turbo |
| Fuel Type | Diesel |
| Displacement | 268.5 cu in (4.4 L) |
| Alternator | 342000 amps |
Capacities
| Hydraulic Oil Reservoir | 26 gal (98.5 L) |
| Engine Oil W/ Filter Change | 4 gal (15 L) |
| Fuel Tank | 27.3 gal (103.3 L) |
| Cooling System | 5.9 gal (22 L) |
| Tipping Load | 7989.6 lb (3624 kg) |
| Hydraulic System | 55 gal (208.2 L) |
Performance
| Rated Operating Capacity (Iso 14397) | 2722.8 lb (1235 kg) |
| Lift Arm Path | Vertica |
| Curl | 1.8 sec |
| Dump | 2.1 sec |
| Lower (Power Down) | 2.5 sec |
| Raise (Lifting) | 3.7 sec |
Loader
| Standard Hydraulic Pump Output | 23.8 gal/min (90 L/min) |
| High Flow Pump Output | 33.1 gal/min (125 L/min) |
| System Pressure | 3336 psi (23000.9 kPa) |
Weights
| Weight | 11003.3 lb (4991 kg) |
Loader
| Bucket Width | 74.9 in (1900 mm) |
Bucket
| General Purpose Bucket Width | 6.3 ft in (1900 mm) |
| Multi Purpose Bucket Width | 6.3 ft in (1900 mm) |
| Landscape Bucket Width | 6.3 ft in (1900 mm) |
| Breakout Force, Lift | 5807 lb (2634 kg) |
| Breakout Force, Curl | 6543.4 lb (2968 kg) |
| General Purpose Bucket Length | 2.7 ft in (800 mm) |
| Landscape Bucket Length | 3.2 ft in (953 mm) |
| Multi Purpose Bucket Length | 3.2 ft in (953 mm) |
| General Purpose Bucket Height | 1.8 ft in (521 mm) |
| Landscape Bucket Height | 1.8 ft in (521 mm) |
| Multi Purpose Bucket Height | 2.3 ft in (701 mm) |
| Landscape Bucket Weight | 0.5 in2 (264 mm2) |
| General Purpose Bucket Weight | 542.4 lb (246 kg) |
| Multi Purpose Bucket Weight | 842.2 lb (382 kg) |
| Multi Purpose Bucket Heaped Cap | 0.8 yd3 (0.7 m3) |
| Landscape Bucket Heaped Cap | 0.8 yd3 (0.6 m3) |
| General Purpose Bucket Heaped Cap | 0.7 yd3 (0.5 m3) |
