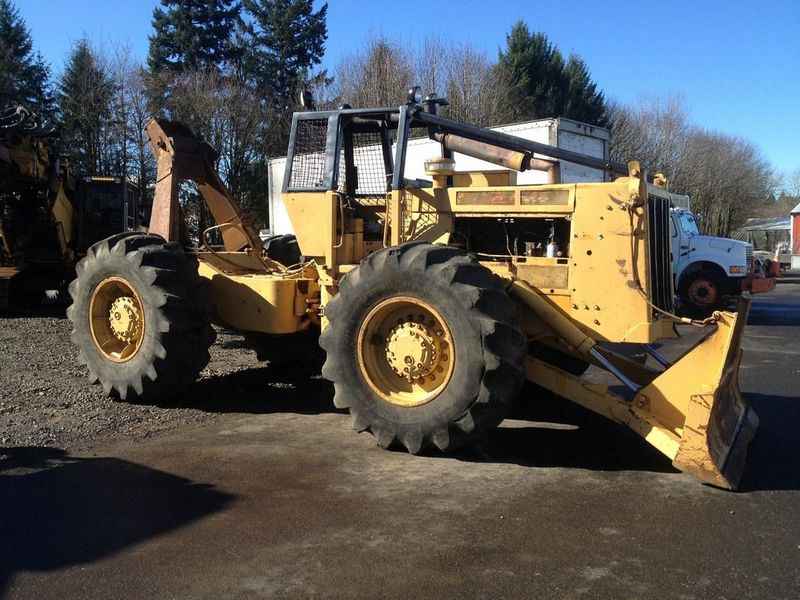

Caterpillar 508 Cable
Browse All Caterpillar or Skidder Models
Contents:
Dimensions
| Overall Length | 17.58 ft in (5357 mm) |
| Overall Width | 8.83 ft in (2690 mm) |
| Height To Top Of Cab | 9.42 ft in (2870 mm) |
| Ground Clearance | 1.71 ft in (521 mm) |
| Wheelbase | 9.19 ft in (2800 mm) |
| Drum Diameter | 8.98 in (228 mm) |
| Max Line Pull - Bare Drum | 21137 lb (94.03 kN) |
| Max Line Speed | 255.91 ft/min (78 m/min) |
| Drum Capacity At Cable Width | 170.61 ft in (52 m) |
| Cable Width | 0.63 in (16 mm) |
| Blade Width | 6.89 ft in (2100 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3204 |
| Gross Power | 95 hp (70.9 kw) |
| Displacement | 317.4 cu in (5.2 L) |
Operational
| Operating Weight | 17130 lb (7770 kg) |
| Fuel Capacity | 42.6 gal (161 L) |
| Hydraulic System Fluid Capacity | 6.9 gal (26.1 L) |
| Axle Oscillation | 15 degrees |
| Tire Size | 23.1-26 |
Transmission
| Number Of Forward Gears | 3 |
| Max Speed - Forward | 16 mph (25.8 km/h) |
