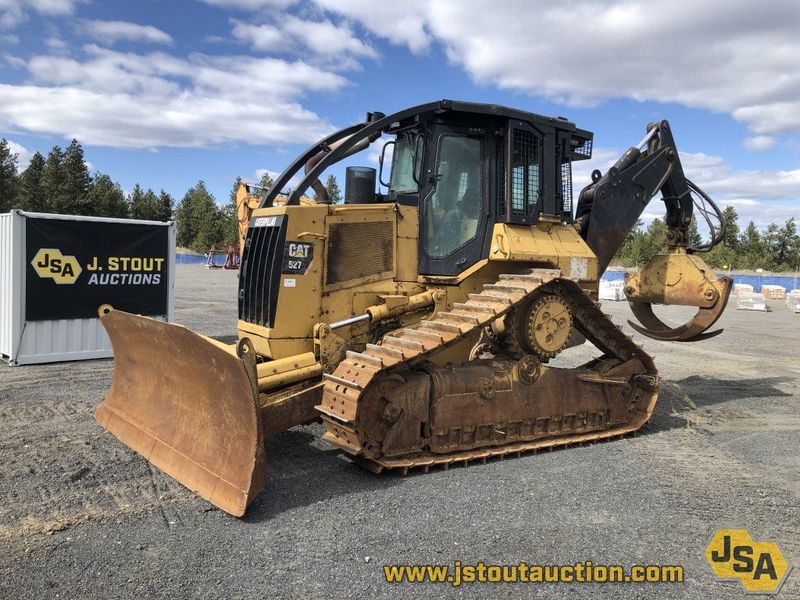

Caterpillar 527 Grapple
Browse All Caterpillar or Skidder Models
Contents:
Dimensions
| Overall Length | 19.92 in (6070 mm) |
| Overall Width | 8.93 ft in (2720 mm) |
| Height To Top Of Cab | 10.83 ft in (3300 mm) |
| Ground Clearance | 1.75 ft in (531.8 mm) |
| Reach Of Grapple At Ground Level | 4.98 ft in (1515 mm) |
| Tong Opening At Tips | 8.34 ft in (2540 mm) |
| Blade Width | 10.41 ft in (3170 mm) |
| Drum Diameter | 10 in (254 mm) |
| Grapple Capacity - Tongs Tip To Tip | 9.05 ft2 (0.84 m2) |
| Max Line Pull - Bare Drum | 29200 lb (129.89 kN) |
| Max Line Speed | 144.36 ft/min (44 m/min) |
Undercarriage
| Length Of Track On Ground | 9.36 ft in (2850 mm) |
| Number Of Track Rollers Per Side | 7 |
| Ground Contact Area | 4944.52 in2 (3.19 m2) |
| Width Of Shoes | 22.05 in (560 mm) |
Engine
| Engine Model | 3304 |
| Gross Power | 150 hp (111.9 kw) |
| Displacement | 427.2 cu in (7 L) |
Operational
| Operating Weight | 47134.9 lb (21380 kg) |
| Fuel Capacity | 67.7 gal (256 L) |
