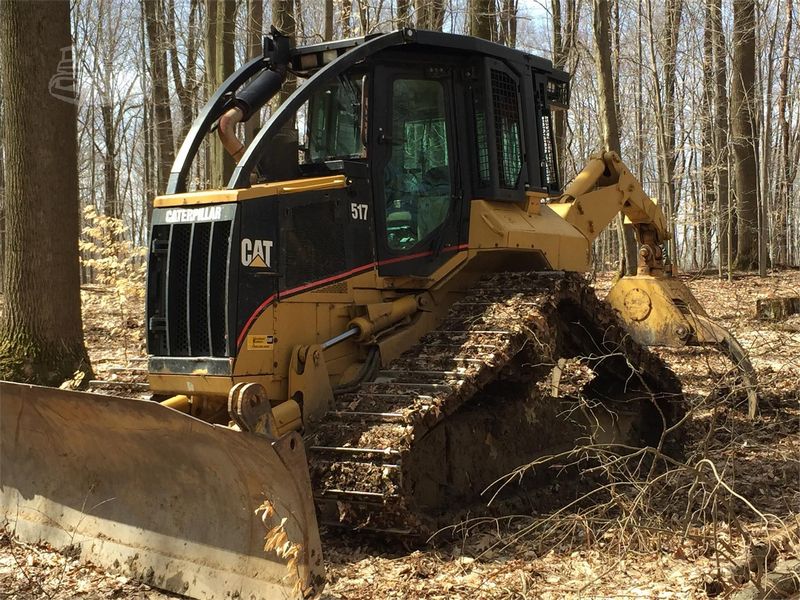

Caterpillar 517 Grapple
Browse All Caterpillar or Skidder Models
Contents:
Dimensions
| Height To Top Of Cab | 8.14 ft in (2480 mm) |
| Ground Clearance | 2.09 ft in (635 mm) |
| Reach Of Grapple At Ground Level | 4.08 ft in (1241 mm) |
| Tong Opening At Tips | 6.99 ft in (2130 mm) |
| Grapple Capacity - Tongs Tip To Tip | 7.97 ft2 (0.74 m2) |
| Drum Diameter | 10 in (254 mm) |
| Blade Width | 8.99 ft in (2740 mm) |
| Max Line Pull - Bare Drum | 68780 lb (305.95 kN) |
| Max Line Speed | 132.88 ft/min (40.5 m/min) |
Undercarriage
| Length Of Track On Ground | 9.55 ft in (2910 mm) |
| Number Of Track Rollers Per Side | 8 |
| Ground Contact Area | 5456.02 in2 (3.52 m2) |
| Width Of Shoes | 25.99 in (660 mm) |
Engine
| Engine Model | 3304 DIT |
| Gross Power | 1201 hp (895.6 kw) |
| Displacement | 427.2 cu in (7 L) |
Operational
| Operating Weight | 40454.9 lb (18350 kg) |
| Fuel Capacity | 68.7 gal (260 L) |
