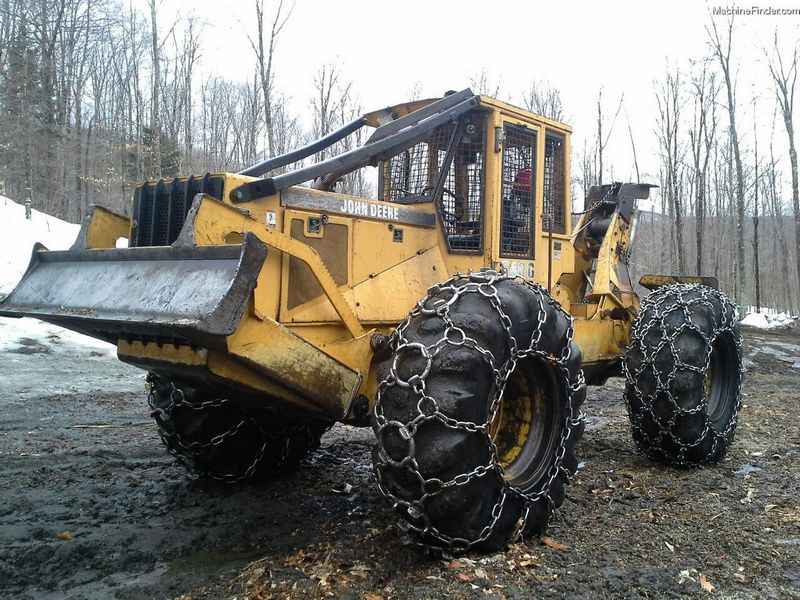

John Deere 640G
Browse All John Deere or Skidder Models
Contents:
Dimensions
| Overall Length | 23.73 ft in (7230 mm) |
| Overall Width | 9.85 ft in (3000 mm) |
| Height To Top Of Cab | 99.32 ft in (30270 mm) |
| Ground Clearance | 1.69 ft in (514 mm) |
| Wheelbase | 11.26 ft in (3430 mm) |
| Max Line Speed | 146 ft/min (44.51 m/min) |
| Max Blade Height | 514.97 in (13080 mm) |
| Drum Capacity At Cable Width | 254 ft in (77.42 m) |
| Drum Diameter | 8 in (203.2 mm) |
| Cable Width | 0.63 in (15.8 mm) |
| Max Line Pull - Bare Drum | 41860 lb (186.21 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068T |
| Gross Power | 157 hp (117.1 kw) |
| Net Power | 151 hp (112.7 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 479 lb ft (649.5 Nm) |
| Torque Measured @ | 1350 rpm |
| Displacement | 414 cu in (6.8 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 23900 lb (10840.9 kg) |
| Fuel Capacity | 42 gal (159 L) |
| Cooling System Fluid Capacity | 7.6 gal (28.4 L) |
| Engine Oil Capacity | 5 gal (18.9 L) |
| Front Diff Fluid Capacity | 4.5 gal (17 L) |
| Rear Diff Fluid Capacity | 7.6 gal (28.4 L) |
| Transmission Fluid Capacity | 7.8 gal (29.3 L) |
| Hydraulic System Fluid Capacity | 11 gal (41.6 L) |
| Operational Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
| Axle Oscillation | 30 degrees |
| Steering Angle | 90 degrees |
| Tire Size | 28L-26 |
Transmission
| Transmission Type | planetary |
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 15.7 mph (25.3 km/h) |
| Max Speed - Reverse | 5.6 mph (9.1 km/h) |
Hydraulic
| Pump Type | piston |
| Pump Flow | 27 gal/min (102 L/min) |
| Relief Valve Pressure | 3000 psi (20684 kPa) |
