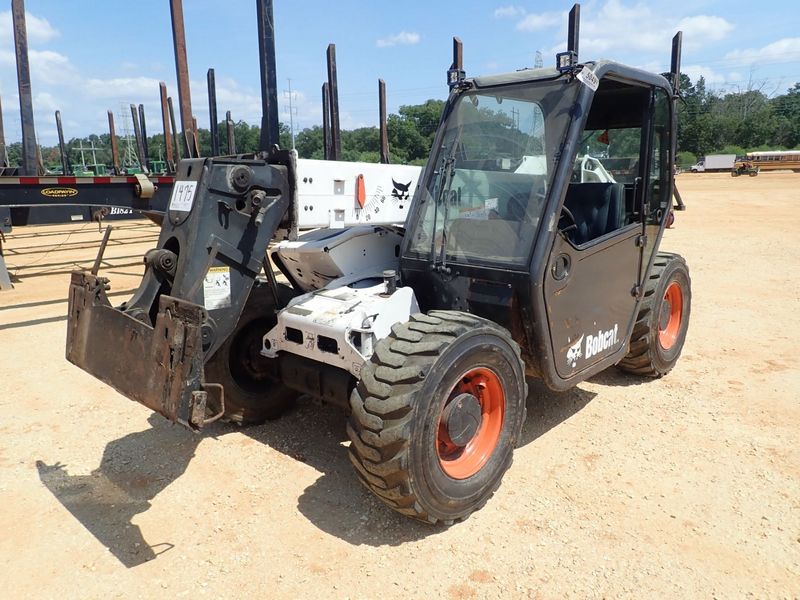

Bobcat V417
Contents:
| Length To Fork Face | 12.25 ft in (3733.8 mm) |
| Width Over Tires | 5.67 ft in (1728.22 mm) |
| Overall Height | 16.18 ft in (4928.62 mm) |
| Wheelbase | 7.08 ft in (2157.99 mm) |
| Max Lift Height | 16.08 ft in (4901.19 mm) |
| Max Forward Reach | 9.67 ft in (2947.42 mm) |
| Max Load At Max Reach | 2000 lb (907.19 kg) |
| Max Load At Max Height | 4400 lb (1995.81 kg) |
| Max Lift Capacity | 4400 lb (1995.81 kg) |
| Engine Make | 2334 |
| Engine Model | V3300-DI-T |
| Gross Power | 75 hp (56 kw) |
| Displacement | 201 cu in (3.3 L) |
| Operating Weight | 10648 lb (4829.9 kg) |
| Max Speed - Forward | 15.5 mph (25 km/h) |
| Max Speed - Reverse | 4.3 mph (7 km/h) |
