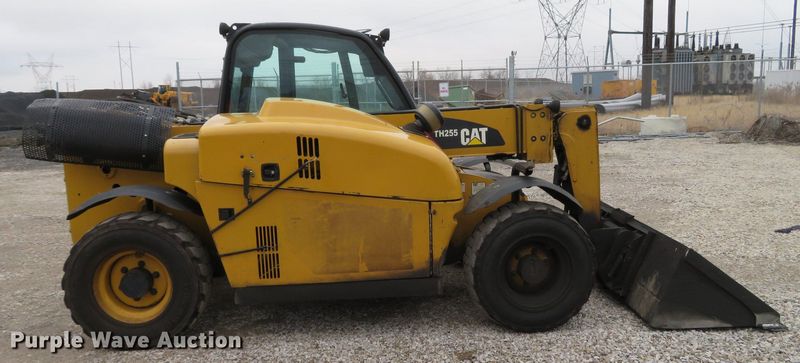

Caterpillar TH255
Browse All Caterpillar or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 12 ft in (3657.6 mm) |
| Ground Clearance | 0.92 ft in (280.42 mm) |
| Overall Height | 6.25 ft in (1905 mm) |
| Wheelbase | 7.42 ft in (2261.62 mm) |
| Turning Radius Outside Tires | 10.42 ft in (3176.02 mm) |
Lift
| Max Lift Height | 18.33 ft in (5586.99 mm) |
| Max Forward Reach | 10.08 ft in (3072.39 mm) |
| Max Load At Max Height | 4400 lb (1995.81 kg) |
| Max Load At Max Reach | 1850 lb (839.15 kg) |
| Max Lift Capacity | 5500 lb (2494.76 kg) |
Engine
| Engine Make | 2236 |
| Engine Model | C4.4 Dit Tier 3 |
| Gross Power | 84 hp (62.7 kw) |
| Max Torque | 260 lb ft (352.6 Nm) |
Operational
| Operating Weight | 10800 lb (4898.8 kg) |
| Fuel Capacity | 24 gal (90.9 L) |
| Hydraulic System Fluid Capacity | 17 gal (64.4 L) |
| Tire Size | 12.00 x 16.5 Pneumatic |
Transmission
| Max Speed - Forward | 16 mph (25.8 km/h) |
Hydraulic
| Pump Type | Single-Secition Gear |
