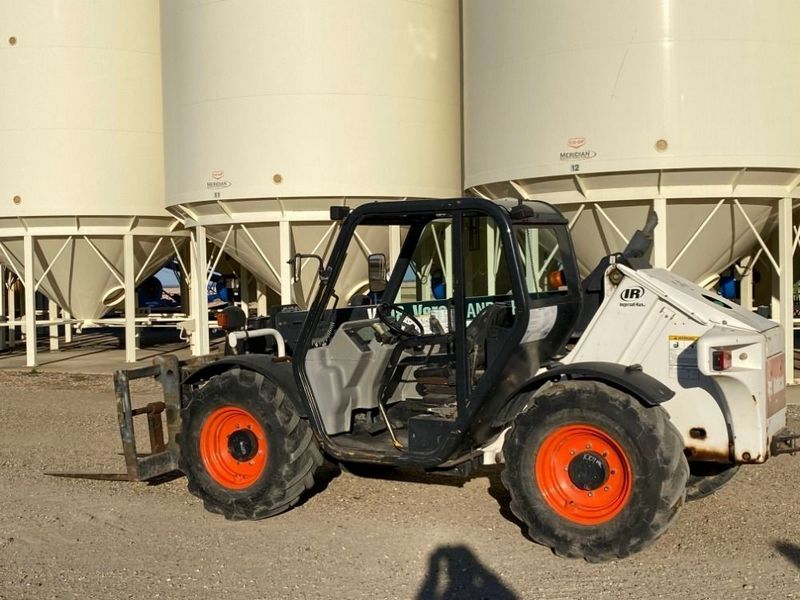

Bobcat V518
Contents:
| Length To Fork Face | 13.58 ft in (4139.19 mm) |
| Width Over Tires | 6.08 ft in (1853.19 mm) |
| Overall Height | 6.88 ft in (2097.03 mm) |
| Wheelbase | 7.67 ft in (2337.82 mm) |
| Max Lift Height | 17.08 ft in (5205.99 mm) |
| Max Forward Reach | 10.08 ft in (3072.39 mm) |
| Max Load At Max Reach | 2200 lb (997.91 kg) |
| Max Load At Max Height | 5500 lb (2494.76 kg) |
| Max Lift Capacity | 5500 lb (2494.76 kg) |
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1104C-44T |
| Gross Power | 100 hp (74.6 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 303.9 lb ft (412 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 269 cu in (4.5 L) |
| Aspiration | turbocharged |
| Operating Weight | 10846 lb (4919.7 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Drawbar Pull | 8317 lb (3772.6 kg) |
| Max Speed - Forward | 18.4 mph (29.7 km/h) |
| Max Speed - Reverse | 18.4 mph (29.7 km/h) |
| Pump Flow Capacity | 21 gal/min (79.5 L/min) |
