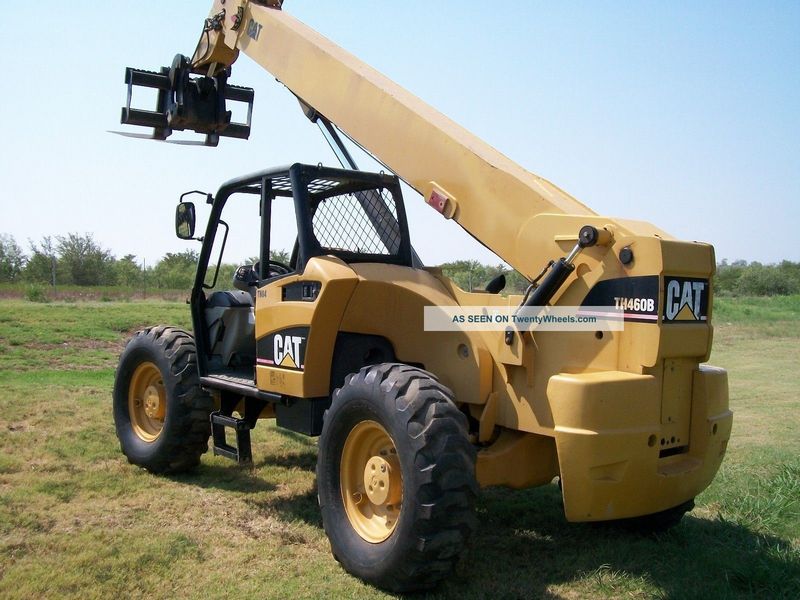

Caterpillar TH460B
Browse All Caterpillar or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 21.49 ft in (6550 mm) |
| Ground Clearance | 1.67 ft in (508 mm) |
| Width Over Tires | 8.26 ft in (2515 mm) |
| Overall Height | 8.31 ft in (2530 mm) |
| Wheelbase | 10.67 ft in (3250 mm) |
| Height - Top Of Hood | 81.12 in (2060.45 mm) |
| Height | 8.31 ft in (2529.84 mm) |
| Length - Front Of Tire | 17.03 ft in (5.2 m) |
| Turning Radius - Over Tires | 12.47 ft in (3.81 m) |
| Turning Radius Outside Tires | 12.47 ft in (3800 mm) |
| Wheel Base | 10.66 ft in (3.25 m) |
| Width | 8.25 ft |
| Length - Fork Face | 19.61 ft in (5.98 m) |
| Rear - Overhang | 4.17 ft |
| Turning Radius - Over Forks | 17.9 ft in (5.46 m) |
Lift
| Max Lift Height | 44.3 ft in (13500 mm) |
| Max Forward Reach | 30.19 ft in (9200 mm) |
| Max Load At Max Height | 8818.5 lb (4000 kg) |
| Max Load At Max Reach | 3306.94 lb (1500 kg) |
| Max Lift Capacity | 8818.5 lb (4000 kg) |
Engine
| Engine Make | 2236 |
| Engine Model | 3054E |
| Gross Power | 99 hp (73.9 kw) |
| Net Power | 94.9 hp (70.8 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 302.5 lb ft (410 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 268 cu in (4.4 L) |
| Bore | 4 in (101.6 mm) |
| Stroke | 5 in (127 mm) |
| Engine Model | Cat 3054E |
| Maximum Torque | 303 lb ft (410.9 Nm) |
Operational
| Operating Weight | 23148.6 lb (10500 kg) |
| Fuel Capacity | 26.5 gal (100 L) |
| Hydraulic System Fluid Capacity | 17.2 gal (65 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Tire Size | 14.00-24 |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 19.9 mph (32 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Weights
| Operating Weight | 24978 lb (11329.9 kg) |
Hydraulic
| Pump Type | Variable displacement load sensing axial piston pump |
| Pump Flow Capacity | 29.9 gal/min (113 L/min) |
| Relief Valve Pressure | 3626 psi (25000 kPa) |
Hydraulic System
| Pump Type | Variable Displacement Axial Piston Pump |
| Maximum System Pressure | 3625 psi |
| Maximum Pump Flow | 40 gal/min |
| Auxiliary Hydraulic Supply | 24 gal/min |
Brakes
| Foot Brake | 4-wheel |
Operating Specifications
| Rated Load Capacity | 9000 lb (4082.4 kg) |
| Maximum Lift Height | 44.3 ft in (13.6 m) |
| Maximum Forward Reach | 30.2 ft in (9.3 m) |
| Top Travel Speed | 25 mph (40.3 km/h) |
| Load At Maximum Reach - No Stabilizers | 1700 lb (771.2 kg) |
| Load At Maximum Height - No Stabilizers | 3000 lb (1360.8 kg) |
| Load At Maximum Height - Stabilizers Up | 3000 lb (1360.8 kg) |
| Load At Maximum Height - Stabilizers Down | 9000 lb (4082.4 kg) |
| Load At Maximum Reach - Stabilizers Up | 1700 lb (771.2 kg) |
| Load At Maximum Reach - Stabilizers Down | 4000 lb (1814.4 kg) |
Service Refill Capacities
| Fuel Tank | 23 gal (87.1 L) |
| Hydraulic Tank | 15 gal (56.8 L) |
Boom Performance
| Boom Up | 17 s |
| Boom Down | 13 s |
| Tele In | 14 s |
| Tele Out | 14 s |
| Crowd Forward - Dump | 3 s |
| Crowd Backward | 3 s |
| Combined - Up And Out | 36 s |
| Combined - Down And In | 20 s |
Transmission Speeds
| Forward - 4 | 25 mph (40.3 km/h) |
| Forward - 1 | 4 mph (6.5 km/h) |
| Forward - 2 | 7 mph (11.3 km/h) |
| Forward - 3 | 13 mph (21 km/h) |
| Reverse - 1 | 4 mph (6.5 km/h) |
| Reverse - 2 | 7 mph (11.3 km/h) |
| Reverse - 3 | 13 mph (21 km/h) |
