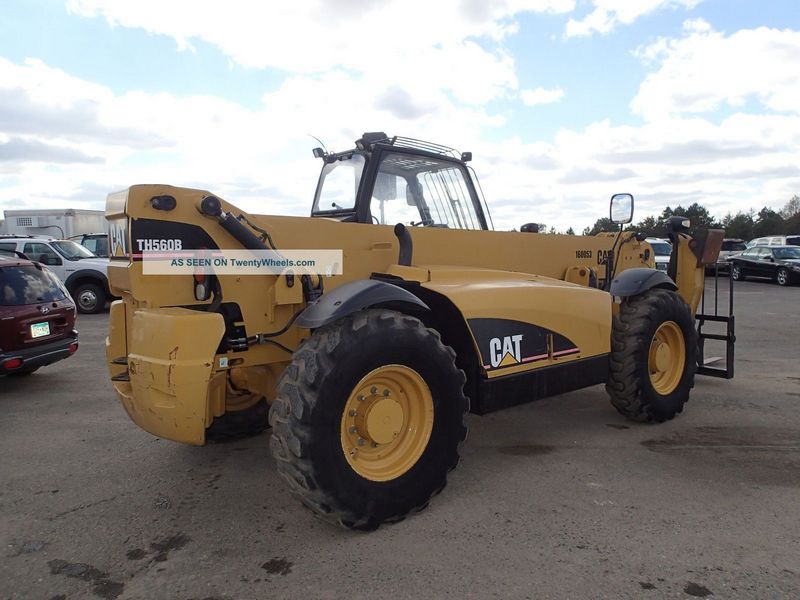

Caterpillar TH560B
Browse All Caterpillar or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 21.49 ft in (6550 mm) |
| Ground Clearance | 1.67 ft in (508 mm) |
| Width Over Tires | 8.37 ft in (2550 mm) |
| Overall Height | 8.5 ft in (2590 mm) |
| Wheelbase | 10.67 ft in (3250 mm) |
| Height - Top Of Hood | 81.48 in (2069.6 mm) |
| Height | 8.5 ft in (2590.81 mm) |
| Length - Front Of Tire | 16.86 ft in (5.14 m) |
| Turning Radius - Over Tires | 12.7 ft in (3.88 m) |
| Turning Radius Outside Tires | 12.7 ft in (3870 mm) |
| Wheel Base | 10.7 ft in (3.27 m) |
| Width | 8.4 ft |
| Length - Fork Face | 21.5 ft in (6.56 m) |
| Rear - Overhang | 3.94 ft |
| Turning Radius - Over Forks | 17.88 ft in (5.45 m) |
Lift
| Max Lift Height | 44.3 ft in (13500 mm) |
| Max Forward Reach | 30.19 ft in (9200 mm) |
| Max Load At Max Height | 8818.5 lb (4000 kg) |
| Max Load At Max Reach | 3527.4 lb (1600 kg) |
| Max Lift Capacity | 10000 lb (4535.93 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | 3054E |
| Gross Power | 100 hp (74.5 kw) |
| Net Power | 94.9 hp (70.8 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 296.5 lb ft (402 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 268 cu in (4.4 L) |
| Bore | 4 in (100.1 mm) |
| Stroke | 5 in (127 mm) |
| Engine Model | Cat 3054E |
| Gross Power - Basic | 99 hp (73.9 kw) |
| Net Power (Basic) | 94.9 hp (70.8 kw) |
| Gross Power - Premium | 120 hp (89.5 kw) |
| Net Power (Premium) | 117.5 hp (87.7 kw) |
| Maximum Torque - Basic | 303 lb ft (410.9 Nm) |
| Maximumtorque - Premium | 330 lb ft (447.5 Nm) |
Operational
| Operating Weight | 26455.5 lb (12000 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Hydraulic System Fluid Capacity | 23.8 gal (90 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 105 amps |
| Tire Size | 14.00-24 |
Transmission
| Transmission Type | Power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 19.9 mph (32 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Weights
| Operating Weight | 26450 lb (11997.6 kg) |
Hydraulic
| Pump Type | variable displacement load sensing axial piston pump |
| Pump Flow Capacity | 29.9 gal/min (113 L/min) |
| Relief Valve Pressure | 3626 psi (25000 kPa) |
Hydraulic System
| Pump Type | Variable Displacement Load Sensing Axial Piston Pump |
| Auxiliary Hydraulic Supply - Intermittent | 24 gal/min |
| Auxiliary Hydraulic Supply - Continuous | 16 gal/min |
| Maximum System Pressure | 3625 psi |
| Maximum Pump Flow | 37.6 gal/min |
Brakes
| Parking Brake | Dry disc on front axle |
| Foot Brake | Servo assisted on front axle |
Operating Specifications
| Rated Load Capacity | 11000 lb (4989.6 kg) |
| Maximum Lift Height | 44.3 ft in (13.5 m) |
| Maximum Forward Reach | 30.2 ft in (9.3 m) |
| Top Travel Speed | 25 mph (40.3 km/h) |
| Load At Maximum Reach - No Stabilizers | 4000 lb (1814.4 kg) |
| Load At Maximum Height - Stabilizers Up | 3000 lb (1360.8 kg) |
| Load At Maximum Height - Stabilizers Down | 9000 lb (4082.4 kg) |
| Load At Maximum Reach - Stabilizers Up | 2000 lb (907.2 kg) |
| Load At Maximum Reach - Stabilizers Down | 4000 lb (1814.4 kg) |
Service Refill Capacities
| Fuel Tank | 29 gal (109.8 L) |
| Hydraulic Tank | 23.8 gal (90.1 L) |
Boom Performance
| Boom Up | 16 s |
| Boom Down | 11 s |
| Tele In | 12 s |
| Tele Out | 13 s |
| Crowd Forward - Dump | 3 s |
| Crowd Backward | 3 s |
| Combined - Up And Out | 27 s |
| Combined - Down And In | 17 s |
Transmission Speeds
| Forward - 4 | 25 mph (40.3 km/h) |
| Forward - 1 | 4 mph (6.5 km/h) |
| Forward - 2 | 7 mph (11.3 km/h) |
| Forward - 3 | 13 mph (21 km/h) |
| Reverse - 1 | 4 mph (6.5 km/h) |
| Reverse - 2 | 7 mph (11.3 km/h) |
| Reverse - 3 | 13 mph (21 km/h) |
