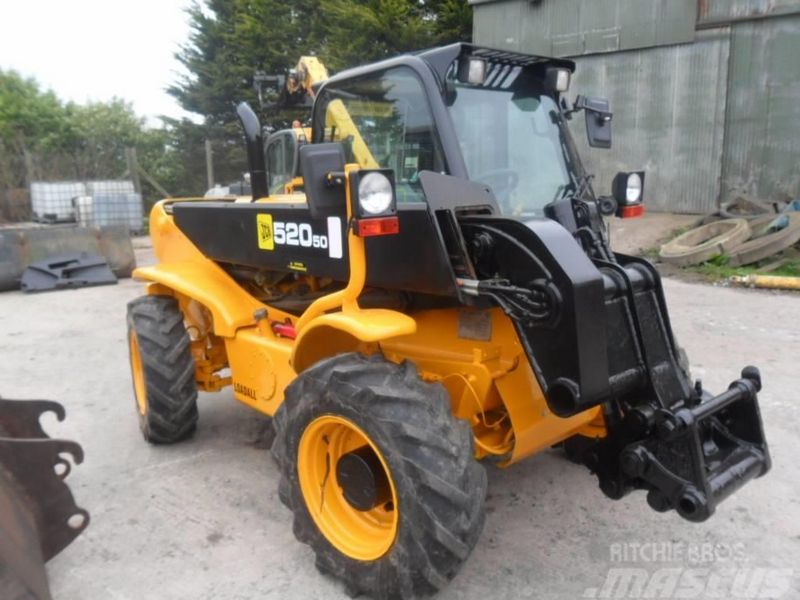

JCB 520-50
Browse All JCB or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 11.78 ft in (3590 mm) |
| Ground Clearance | 0.99 ft in (300 mm) |
| Width Over Tires | 6.04 ft in (1840 mm) |
| Overall Height | 6.96 ft in (2120 mm) |
| Wheelbase | 6.57 ft in (2000 mm) |
Lift
| Max Lift Height | 16.41 ft in (5000 mm) |
| Max Forward Reach | 9.26 ft in (2820 mm) |
| Max Load At Max Reach | 1653.47 lb (750 kg) |
| Max Load At Max Height | 4409.25 lb (2000 kg) |
| Max Lift Capacity | 4409.25 lb (2000 kg) |
Engine
| Number Of Cylinders | 4 |
| Gross Power | 77 hp (57.5 kw) |
| Max Torque | 213.9 lb ft (290 Nm) |
| Displacement | 134.3 cu in (2.2 L) |
| Aspiration | Naturally aspirated |
Operational
| Operating Weight | 9700 lb (4399.9 kg) |
| Fuel Capacity | 16 gal (60.6 L) |
| Hydraulic System Fluid Capacity | 8.7 gal (33 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
| Tire Size | 10.00 x18 10PR |
Transmission
| Transmission Type | syncro shuttle transmission |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 18.7 mph (30 km/h) |
| Max Speed - Reverse | 18.7 mph (30 km/h) |
Hydraulic
| Pump Flow Capacity | 17.2 gal/min (65 L/min) |
| Relief Valve Pressure | 3500 psi (24131.7 kPa) |
