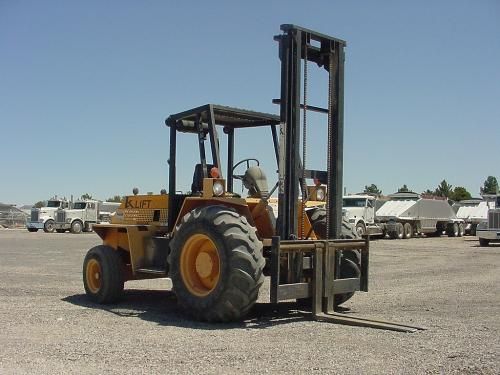

Lift King LK60R
Browse All Lift King or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 17.34 ft in (5283 mm) |
| Ground Clearance | 15.99 ft in (406 mm) |
| Width Over Tires | 8 ft in (2438 mm) |
| Overall Height | 8 ft in (2438 mm) |
| Wheelbase | 9.67 ft in (2946 mm) |
| Turning Radius Outside Tires | 13.46 ft in (4100 mm) |
Lift
| Max Lift Height | 36.75 ft in (11200 mm) |
| Max Forward Reach | 22.64 ft in (6900 mm) |
| Max Load At Max Reach | 2000 lb (907.19 kg) |
| Max Load At Max Height | 6000 lb (2721.56 kg) |
| Max Lift Capacity | 6000 lb (2721.56 kg) |
Engine
| Engine Make | 2347 |
| Engine Model | 4B3.9 |
| Gross Power | 76 hp (56.7 kw) |
| Aspiration | naturally aspirated |
Operational
| Operating Weight | 18300 lb (8300.8 kg) |
| Fuel Capacity | 25 gal (94.6 L) |
| Hydraulic System Fluid Capacity | 25 gal (94.6 L) |
| Operating Voltage | 12 V |
| Tire Size | 13.00-24TG 12ply |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 3 |
