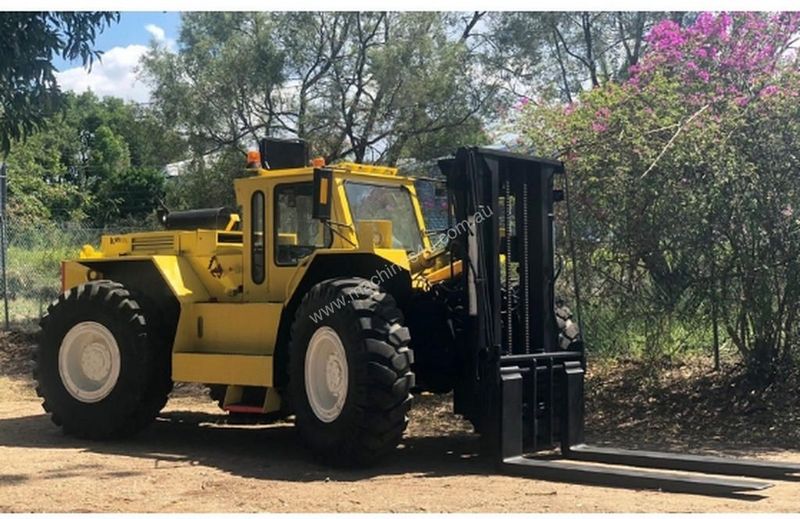

Lift King LK630R
Browse All Lift King or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 19.36 ft in (5900 mm) |
| Ground Clearance | 17.33 ft in (440 mm) |
| Width Over Tires | 7.88 ft in (2400 mm) |
| Overall Height | 7.88 ft in (2400 mm) |
| Wheelbase | 9.85 ft in (3000 mm) |
| Turning Radius Outside Tires | 13.13 ft in (4000 mm) |
Lift
| Max Lift Height | 29.86 ft in (9100 mm) |
| Max Forward Reach | 16.41 ft in (5000 mm) |
| Max Load At Max Reach | 3000 lb (1360.78 kg) |
| Max Load At Max Height | 6000 lb (2721.56 kg) |
| Max Lift Capacity | 6000 lb (2721.56 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1004-40T |
| Gross Power | 110 hp (82.1 kw) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 20100 lb (9117.3 kg) |
| Operating Voltage | 12 V |
| Tire Size | 13.00-24 |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 3 |
