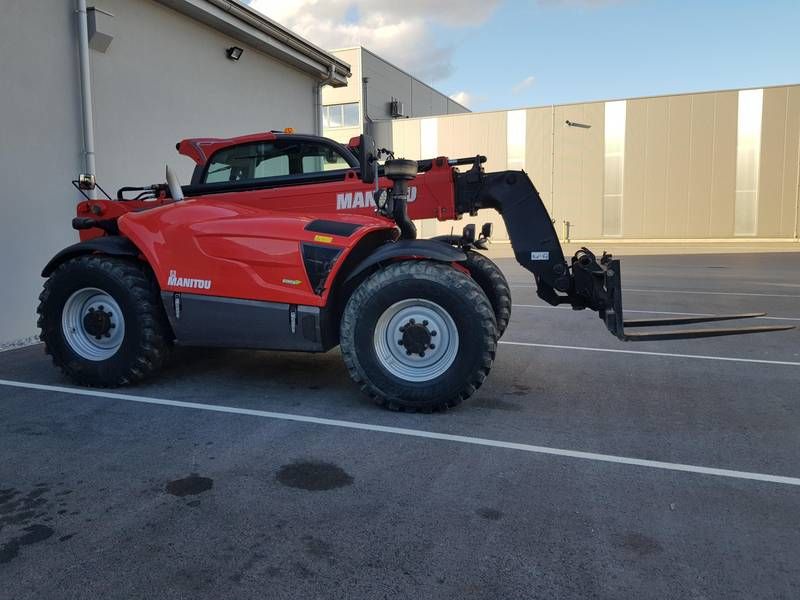

Manitou MLT 1040-137 PS
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 16.97 ft in (5170 mm) |
| Ground Clearance | 1.35 ft in (410 mm) |
| Width Over Tires | 7.85 ft in (2390 mm) |
| Overall Height | 7.94 ft in (2420 mm) |
| Wheelbase | 9.45 ft in (2880 mm) |
| Turning Radius Outside Tires | 12.37 ft in (3770 mm) |
Lift
| Max Lift Height | 31.5 ft in (9600 mm) |
| Max Forward Reach | 21.33 ft in (6500 mm) |
| Lowering Time - Unladen | 5.36 sec |
| Boom Retraction Time - Unladen | 9 sec |
| Crowd | 3.8 sec |
| Dump | 2.6 sec |
| Lifting Time - Unladen | 8.6 sec |
| Boom Extension Time - Unladen | 11.3 sec |
| Max Lift Capacity | 8818.49 lb (4000 kg) |
Engine
| Engine Make | John Deere |
| Engine Model | 4045 PWX |
| Gross Power | 137 hp (102.2 kw) |
| Cooling System | Water |
| Max Torque | 393.9 lb ft (534 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 274.7 cu in (4.5 L) |
| Emission Level | Stage III B |
| Injection | Direct |
Operational
| Operating Weight | 19268.5 lb (8740 kg) |
| Fuel Capacity | 37.8 gal (143 L) |
| Hydraulic System Fluid Capacity | 51.6 gal (195 L) |
| Tire Size | 460/70-24 |
Transmission
| Transmission Type | Torque converter |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
Hydraulic
| Pump Flow Capacity | 47.6 gal/min (180 L/min) |
| Relief Valve Pressure | 4206.1 psi (29000 kPa) |
