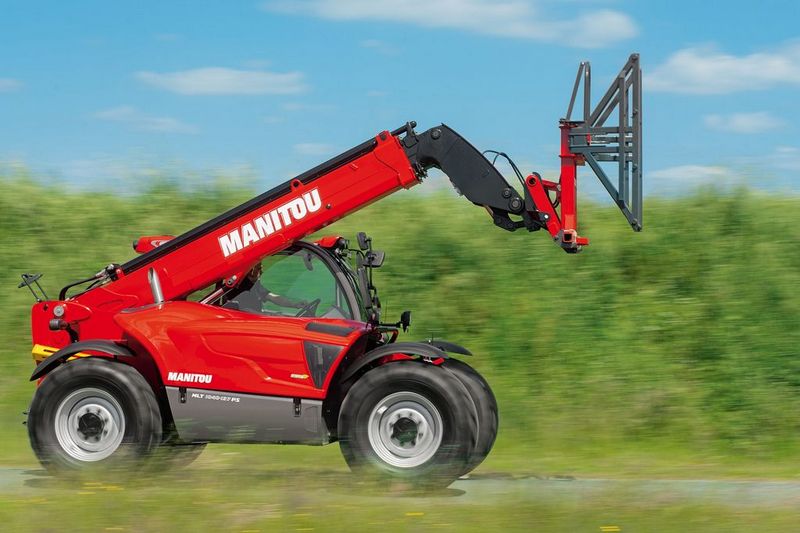

Manitou MLT 1040-145 PS
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 16.11 ft in (4907.28 mm) |
| Ground Clearance | 0.2 ft in (60.96 mm) |
| Width Over Tires | 7.1 ft in (2164.08 mm) |
| Overall Height | 7.1 ft in (2164.08 mm) |
| Wheelbase | 9.6 ft in (2926.08 mm) |
| Turning Radius Outside Tires | 12.4 ft in (3779.52 mm) |
Lift
| Max Lift Height | 31.7 ft in (9662.16 mm) |
| Max Forward Reach | 21.7 ft in (6614.16 mm) |
| Lowering Time - Unladen | 5.36 sec |
| Boom Retraction Time - Unladen | 9 sec |
| Crowd | 3.8 sec |
| Dump | 2.6 sec |
| Lifting Time - Unladen | 8.34 sec |
| Boom Extension Time - Unladen | 11.3 sec |
| Max Lift Capacity | 8818.49 lb (4000 kg) |
Engine
| Transmission Type | Torque converter |
| Number Of Cylinders | 4 |
| Engine Make | John Deere |
| Gross Power | 141 hp (105.2 kw) |
| Max Torque | 398.3 lb ft (540 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 275 cu in (4.6 L) |
| Emission Level | Stage IV / Tier 4 Final |
Operational
| Operating Weight | 19599.1 lb (8890 kg) |
| Hydraulic System Fluid Capacity | 41 gal (155.3 L) |
Hydraulic
| Relief Valve Pressure | 3916.1 psi (27000 kPa) |
