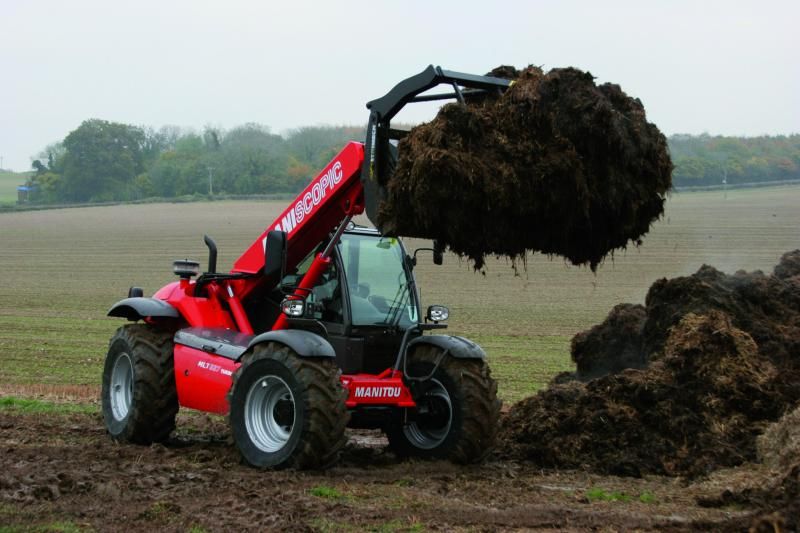

Manitou MLT 627 20" TURBO
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 15.38 ft in (4687 mm) |
| Ground Clearance | 15.75 ft in (400 mm) |
| Width Over Tires | 6.6 ft in (2010 mm) |
| Overall Height | 8.11 ft in (2470 mm) |
| Wheelbase | 8.27 ft in (2520 mm) |
| Turning Radius Outside Tires | 11.82 ft in (3600 mm) |
Lift
| Max Lift Height | 18.05 ft in (5500 mm) |
| Max Forward Reach | 10.5 ft in (3200 mm) |
| Max Load At Max Reach | 2645.55 lb (1200 kg) |
| Max Load At Max Height | 5952.49 lb (2700 kg) |
| Max Lift Capacity | 5952.49 lb (2700 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104C.44 Turbo |
| Gross Power | 100 hp (74.5 kw) |
| Max Torque | 303.9 lb ft (412 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 13084.5 lb (5935 kg) |
| Fuel Capacity | 27.5 gal (104 L) |
| Hydraulic System Fluid Capacity | 25.9 gal (98 L) |
| Drawbar Pull | 15972.3 lb (7244.9 kg) |
| Tire Size | 400/70-20 T37 |
Transmission
| Transmission Type | torque converter |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 18.7 mph (30 km/h) |
Hydraulic
| Pump Type | gear |
| Pump Flow Capacity | 27.8 gal/min (105 L/min) |
