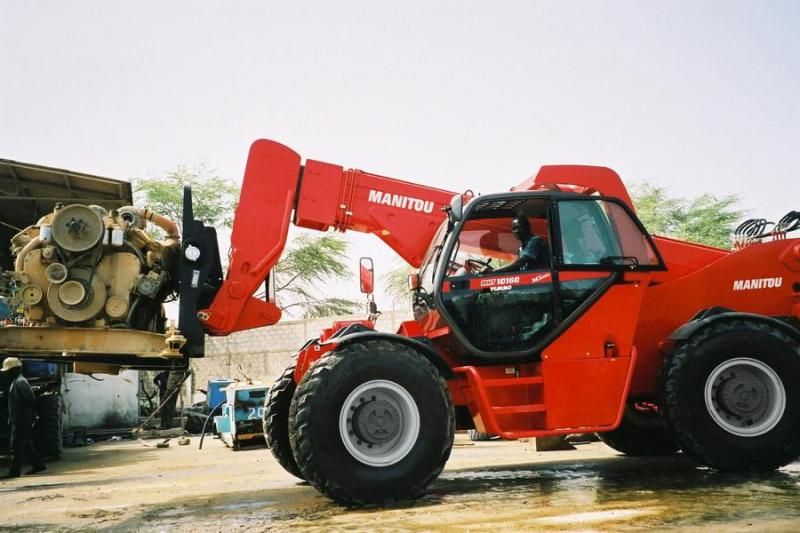

Manitou MHT 10160 L Turbo
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 21.67 ft in (6605 mm) |
| Ground Clearance | 17.52 ft in (445 mm) |
| Width Over Tires | 8.21 ft in (2500 mm) |
| Overall Height | 9.63 ft in (2935 mm) |
| Wheelbase | 11.98 ft in (3650 mm) |
| Turning Radius Outside Tires | 18.66 ft in (5685 mm) |
Lift
| Max Lift Height | 31.83 ft in (9700 mm) |
| Max Forward Reach | 18.05 ft in (5500 mm) |
| Max Load At Max Reach | 9259.42 lb (4200 kg) |
| Max Load At Max Height | 15432.36 lb (7000 kg) |
| Max Lift Capacity | 35273.97 lb (16000 kg) |
Engine
| Engine Make | 2345 |
| Engine Model | OM 904 LA Turbo |
| Gross Power | 173 hp (129 kw) |
| Max Torque | 497.9 lb ft (675 Nm) |
| Displacement | 259.4 cu in (4.3 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 52062.2 lb (23615 kg) |
| Fuel Capacity | 52.9 gal (200 L) |
| Hydraulic System Fluid Capacity | 76.7 gal (290 L) |
| Operating Voltage | 12 V |
| Drawbar Pull | 34868.4 lb (15816 kg) |
| Tire Size | 16.00R25 |
Transmission
| Transmission Type | rexroth |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | piston load sensing rexroth haute pression |
| Pump Flow Capacity | 45 gal/min (170 L/min) |
| Relief Valve Pressure | 5076.4 psi (35000 kPa) |
