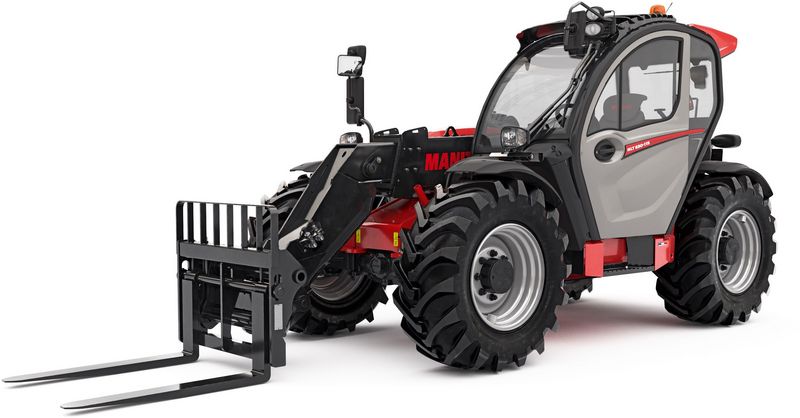

Manitou MLT 630 T
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 14.74 ft in (4491 mm) |
| Ground Clearance | 17.33 ft in (440 mm) |
| Width Over Tires | 7.63 ft in (2325 mm) |
| Overall Height | 8.37 ft in (2550 mm) |
| Wheelbase | 8.4 ft in (2560 mm) |
| Turning Radius Outside Tires | 12.15 ft in (3703 mm) |
Lift
| Max Lift Height | 19.85 ft in (6050 mm) |
| Max Forward Reach | 10.67 ft in (3250 mm) |
| Max Load At Max Reach | 2645.55 lb (1200 kg) |
| Max Load At Max Height | 6613.87 lb (3000 kg) |
| Max Lift Capacity | 6613.87 lb (3000 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104C-44T |
| Gross Power | 100 hp (74.5 kw) |
| Max Torque | 303.9 lb ft (412 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 14219.9 lb (6450 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Hydraulic System Fluid Capacity | 33.1 gal (125 L) |
| Drawbar Pull | 16872.2 lb (7653.1 kg) |
| Tire Size | 460/70-24 XMCL |
Transmission
| Transmission Type | torque converter |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 26.1 mph (42 km/h) |
Hydraulic
| Pump Type | gear |
| Pump Flow Capacity | 27.8 gal/min (105 L/min) |
