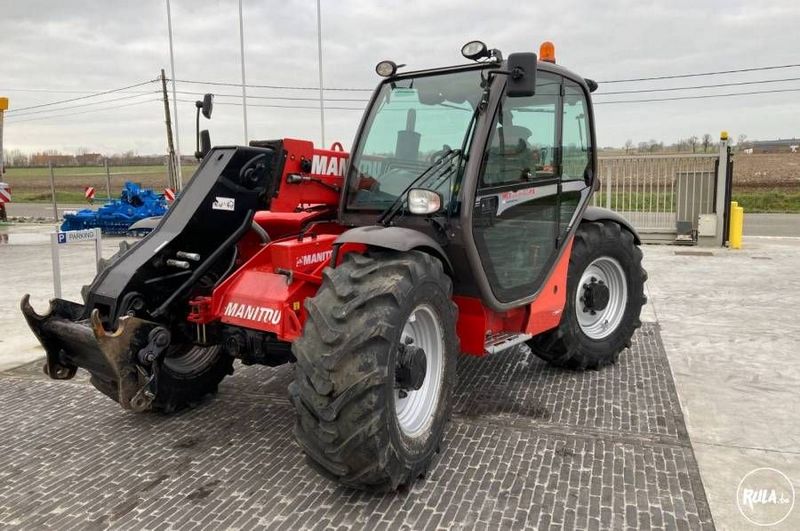

Manitou MLT 634 - 120 LSU PS
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 15.03 ft in (4579 mm) |
| Ground Clearance | 17.33 ft in (440 mm) |
| Width Over Tires | 7.63 ft in (2325 mm) |
| Overall Height | 8.37 ft in (2550 mm) |
| Wheelbase | 8.4 ft in (2560 mm) |
| Turning Radius Outside Tires | 12.15 ft in (3703 mm) |
Lift
| Max Lift Height | 19.85 ft in (6050 mm) |
| Max Forward Reach | 10.67 ft in (3250 mm) |
| Max Load At Max Reach | 3306.94 lb (1500 kg) |
| Max Load At Max Height | 7495.72 lb (3400 kg) |
| Max Lift Capacity | 7495.72 lb (3400 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104D - E44TA |
| Gross Power | 122.1 hp (91 kw) |
| Max Torque | 361.5 lb ft (490 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 15322.2 lb (6950 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Hydraulic System Fluid Capacity | 33.1 gal (125 L) |
| Drawbar Pull | 19346.7 lb (8775.5 kg) |
| Tire Size | 460/70-24 XMCL |
Transmission
| Transmission Type | torque converter |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 26.1 mph (42 km/h) |
Hydraulic
| Pump Type | electronically regulated variable displacement pump |
| Pump Flow Capacity | 39.7 gal/min (150 L/min) |
