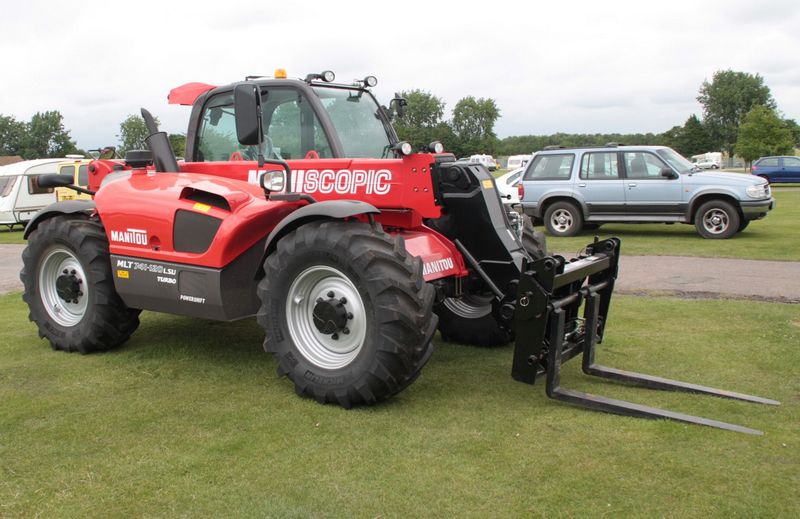

Manitou MLT 741 - 120 LSU
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 16.14 ft in (4919 mm) |
| Ground Clearance | 17.33 ft in (440 mm) |
| Width Over Tires | 7.63 ft in (2325 mm) |
| Overall Height | 8.37 ft in (2550 mm) |
| Wheelbase | 9.22 ft in (2810 mm) |
| Turning Radius Outside Tires | 12.65 ft in (3853 mm) |
Lift
| Max Lift Height | 22.64 ft in (6900 mm) |
| Max Forward Reach | 12.9 ft in (3930 mm) |
| Max Load At Max Reach | 2866.01 lb (1300 kg) |
| Max Load At Max Height | 5511.56 lb (2500 kg) |
| Max Lift Capacity | 9038.96 lb (4100 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104D-E44TA |
| Gross Power | 122.1 hp (91 kw) |
| Max Torque | 361.5 lb ft (490 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 16237.1 lb (7365 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Hydraulic System Fluid Capacity | 33.1 gal (125 L) |
| Drawbar Pull | 20471.5 lb (9285.7 kg) |
| Tire Size | 460/70-24 XMCL |
Transmission
| Transmission Type | torque convertor |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 26.1 mph (42 km/h) |
Hydraulic
| Pump Type | electronically regulated variable displacement pump |
| Pump Flow Capacity | 39.7 gal/min (150 L/min) |
| Relief Valve Pressure | 3916.1 psi (27000 kPa) |
