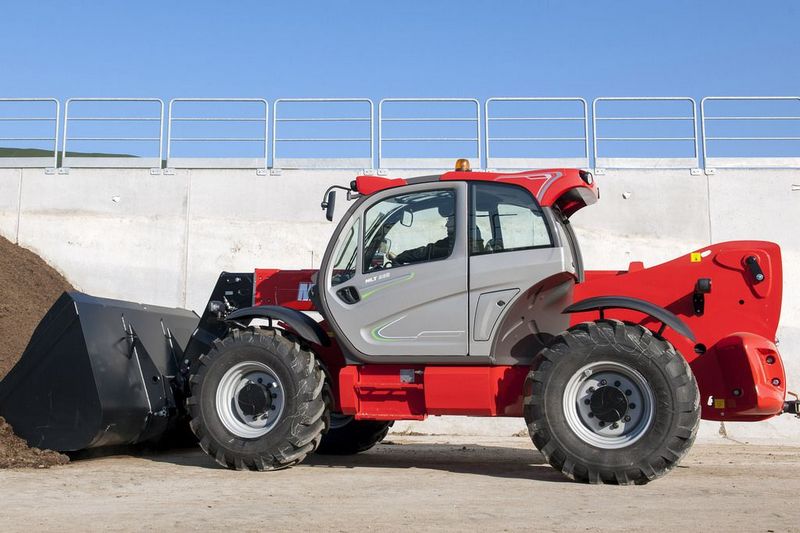

Manitou MLT 960
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 20.02 ft in (6100 mm) |
| Ground Clearance | 1.48 ft in (450 mm) |
| Width Over Tires | 8.14 ft in (2480 mm) |
| Overall Height | 8.31 ft in (2530 mm) |
| Wheelbase | 9.1 ft in (2773.68 mm) |
| Turning Radius Outside Tires | 14.11 ft in (4300 mm) |
Lift
| Max Lift Height | 29.7 ft in (9052.56 mm) |
| Max Forward Reach | 17.5 ft in (5334 mm) |
| Lowering Time - Unladen | 6.5 sec |
| Boom Retraction Time - Unladen | 6 sec |
| Crowd | 3.8 sec |
| Dump | 3.6 sec |
| Lifting Time - Unladen | 8.5 sec |
| Boom Extension Time - Unladen | 7 sec |
| Max Lift Capacity | 13227.74 lb (6000 kg) |
Engine
| Transmission Type | Continuous variable |
| Number Of Cylinders | 4 |
| Engine Make | John Deere |
| Engine Model | 4045 PWX |
| Gross Power | 141 hp (105.2 kw) |
| Max Torque | 398.3 lb ft (540 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 275 cu in (4.6 L) |
| Fuel Type | Diesel |
| Emission Level | Stage IV / Tier 4 Final |
Operational
| Operating Weight | 25132.7 lb (11400 kg) |
| Hydraulic System Fluid Capacity | 40 gal (151.5 L) |
Hydraulic
| Relief Valve Pressure | 3916.1 psi (27000 kPa) |
