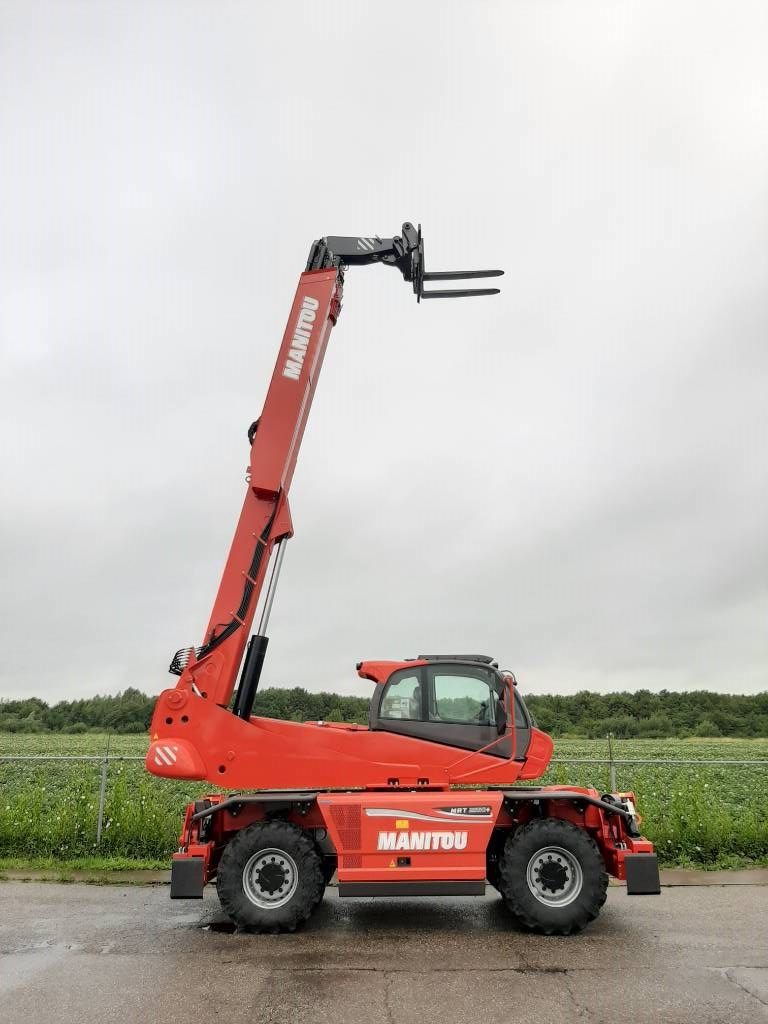

Manitou MRT 2550 PRIVILEGE PLUS
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 25.9 ft in (7894.32 mm) |
| Ground Clearance | 1.2 ft in (365.76 mm) |
| Width Over Tires | 8.2 ft in (2499.36 mm) |
| Overall Height | 10 ft in (3048 mm) |
| Wheelbase | 10 ft in (3048 mm) |
| Turning Radius Outside Tires | 17.2 ft in (5242.57 mm) |
Lift
| Max Lift Height | 81 ft in (24688.8 mm) |
| Max Load At Max Reach | 70.3 lb (31.89 kg) |
| Max Lift Capacity | 11020.91 lb (4999 kg) |
Engine
| Emission Tier Level | Tier 4 Final |
| Number Of Cylinders | 4 |
| Engine Model | OM 934 E4-5 |
| Gross Power | 156 hp (116.4 kw) |
| Net Power | 154.3 hp (115 kw) |
| Max Torque | 497.9 lb ft (675 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 19100.5 cu in (313 L) |
| Injection | Direct |
Operational
| Hydraulic System Fluid Capacity | 59.5 gal (225 L) |
| Alternator Supplied Amperage | 24 amps |
| Drawbar Pull | 19558 lb (8871.4 kg) |
Transmission
| Number Of Wheels Front | 2 |
| Number Of Wheels Rear | 2 |
| Tyre Dimensions Front | 445 / 65 R22.5 |
| Tyre Dimensions Rear | 445 / 65 R22.5 |
| Driving Position Noise Levels | 77.4 dB |
| Environmental Noise Levels | 107 dB |
| Vibration Affecting Hands/Arms | 2.5 sec |
| Max Speed | 24.9 mph (40 km/h) |
| Transmission Type | Hydrostatic |
