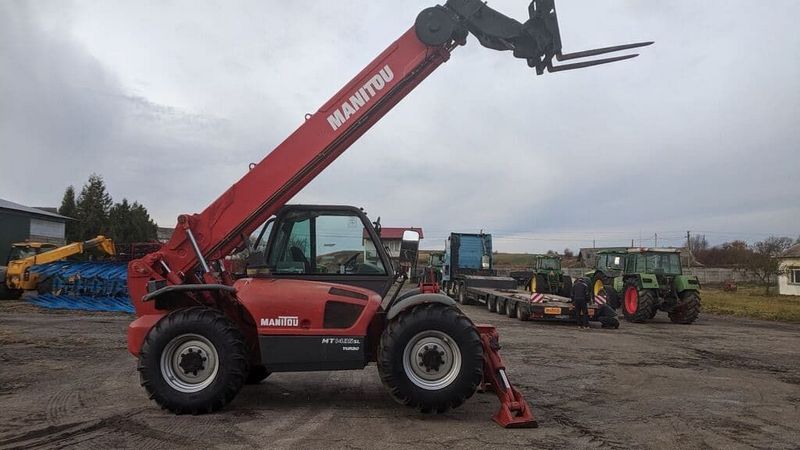

Manitou MT 1435 SLT
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 19.98 ft in (6089 mm) |
| Ground Clearance | 17.52 ft in (445 mm) |
| Width Over Tires | 7.65 ft in (2330 mm) |
| Overall Height | 9.04 ft in (2755 mm) |
| Wheelbase | 9.09 ft in (2770 mm) |
| Turning Radius Outside Tires | 13.64 ft in (4157 mm) |
Lift
| Max Lift Height | 44.62 ft in (13600 mm) |
| Max Forward Reach | 32.16 ft in (9800 mm) |
| Max Load At Max Reach | 2314.86 lb (1050 kg) |
| Max Load At Max Height | 4409.25 lb (2000 kg) |
| Max Lift Capacity | 7716.18 lb (3500 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104C.44 Turbo |
| Gross Power | 100 hp (74.5 kw) |
| Max Torque | 303.9 lb ft (412 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 22509.2 lb (10210 kg) |
| Fuel Capacity | 35.7 gal (135 L) |
| Hydraulic System Fluid Capacity | 31.8 gal (120 L) |
| Drawbar Pull | 19345.6 lb (8775 kg) |
| Tire Size | 15.5/80-24 |
Transmission
| Transmission Type | torque convertor |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | gear |
| Pump Flow Capacity | 43.1 gal/min (163 L/min) |
| Relief Valve Pressure | 3771 psi (26000 kPa) |
