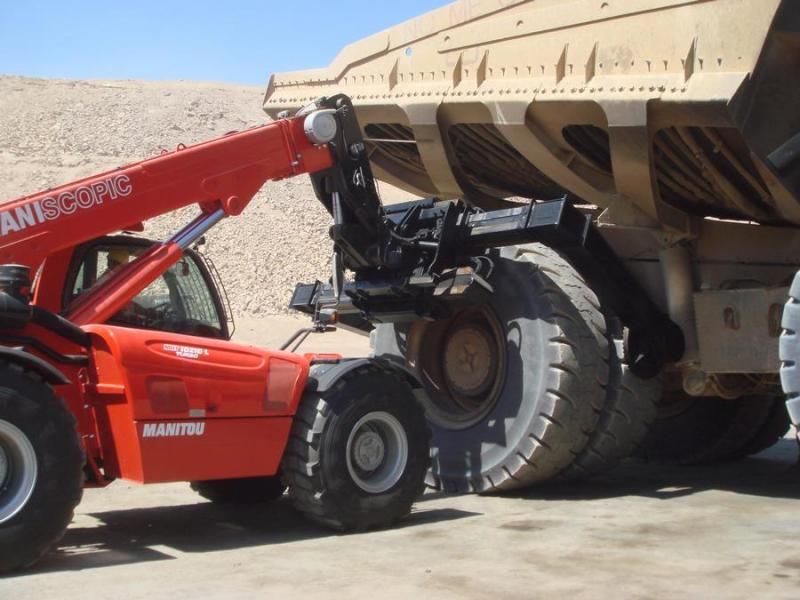

Manitou MHT 10210 L Turbo
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 22.51 ft in (6860 mm) |
| Ground Clearance | 18.51 ft in (470 mm) |
| Width Over Tires | 8.73 ft in (2660 mm) |
| Overall Height | 9.72 ft in (2960 mm) |
| Wheelbase | 11.98 ft in (3650 mm) |
| Turning Radius Outside Tires | 19.85 ft in (6050 mm) |
Lift
| Max Lift Height | 31.83 ft in (9700 mm) |
| Max Forward Reach | 19.26 ft in (5870 mm) |
| Max Load At Max Reach | 11023.12 lb (5000 kg) |
| Max Load At Max Height | 28660.1 lb (13000 kg) |
| Max Lift Capacity | 46297.08 lb (21000 kg) |
Engine
| Engine Make | 2345 |
| Engine Model | OM 904 LA Turbo |
| Gross Power | 173 hp (129 kw) |
| Max Torque | 497.9 lb ft (675 Nm) |
| Displacement | 259.4 cu in (4.3 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 62501.1 lb (28350 kg) |
| Fuel Capacity | 52.9 gal (200 L) |
| Hydraulic System Fluid Capacity | 76.7 gal (290 L) |
| Operating Voltage | 12 V |
| Drawbar Pull | 39143.1 lb (17755 kg) |
| Tire Size | 23.5R25 XLB |
Transmission
| Transmission Type | rexroth |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | high pressure piston pump rexroth load sensing |
| Pump Flow Capacity | 43.6 gal/min (165 L/min) |
| Relief Valve Pressure | 5076.4 psi (35000 kPa) |
