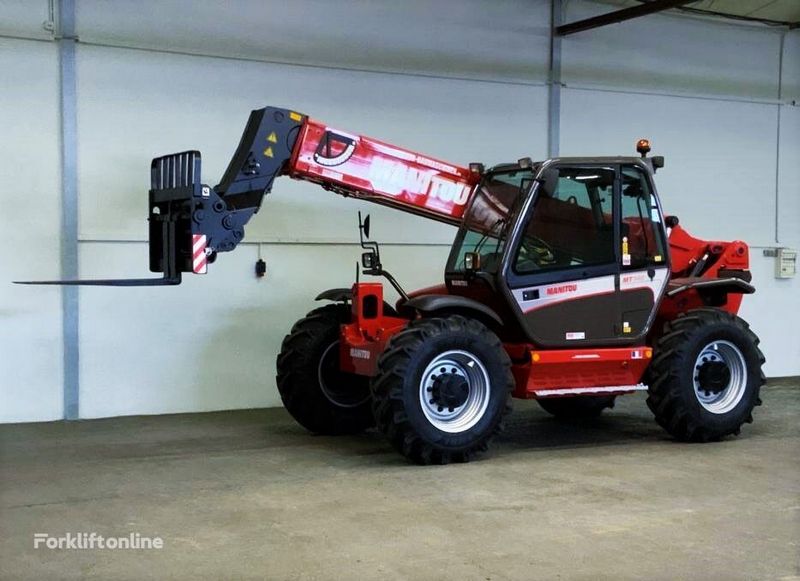

Manitou MT 940 LT
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 18.51 ft in (5639 mm) |
| Ground Clearance | 18.12 ft in (460 mm) |
| Width Over Tires | 7.85 ft in (2390 mm) |
| Overall Height | 9.09 ft in (2770 mm) |
| Wheelbase | 9.09 ft in (2770 mm) |
| Turning Radius Outside Tires | 13.62 ft in (4150 mm) |
Lift
| Max Lift Height | 29.43 ft in (8970 mm) |
| Max Forward Reach | 17.46 ft in (5320 mm) |
| Max Load At Max Reach | 2204.63 lb (1000 kg) |
| Max Load At Max Height | 7716.18 lb (3500 kg) |
| Max Lift Capacity | 8818.5 lb (4000 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104C-44T |
| Gross Power | 100 hp (74.5 kw) |
| Max Torque | 303.9 lb ft (412 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
Operational
| Operating Weight | 19775.5 lb (8970 kg) |
| Fuel Capacity | 35.7 gal (135 L) |
| Hydraulic System Fluid Capacity | 31.8 gal (120 L) |
| Drawbar Pull | 19347.8 lb (8776 kg) |
| Tire Size | 15.5/80-24 16PR SGI |
Transmission
| Transmission Type | torque convertor |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | gear type |
| Pump Flow Capacity | 25.4 gal/min (96 L/min) |
| Relief Valve Pressure | 3626 psi (25000 kPa) |
