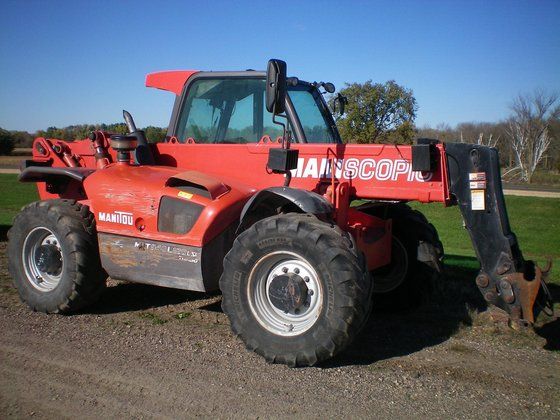

Manitou MLT 940 L -120 LSU
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 18.55 ft in (5654 mm) |
| Ground Clearance | 18.12 ft in (460 mm) |
| Width Over Tires | 7.94 ft in (2420 mm) |
| Overall Height | 9.08 ft in (2765 mm) |
| Wheelbase | 9.09 ft in (2770 mm) |
| Turning Radius Outside Tires | 13.62 ft in (4150 mm) |
Lift
| Max Lift Height | 29.43 ft in (8970 mm) |
| Max Forward Reach | 17.46 ft in (5320 mm) |
| Max Load At Max Reach | 2204.63 lb (1000 kg) |
| Max Load At Max Height | 7716.18 lb (3500 kg) |
| Max Lift Capacity | 8818.5 lb (4000 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1104D-E44TA |
| Gross Power | 122.1 hp (91 kw) |
| Max Torque | 361.5 lb ft (490 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 268.6 cu in (4.4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 20315.6 lb (9215 kg) |
| Fuel Capacity | 35.7 gal (135 L) |
| Hydraulic System Fluid Capacity | 34.7 gal (131 L) |
| Drawbar Pull | 21821.4 lb (9898 kg) |
| Tire Size | 460/70 -24 XMCL |
Transmission
| Transmission Type | torque convertor |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21 mph (33.8 km/h) |
| Max Speed - Reverse | 21 mph (33.8 km/h) |
Hydraulic
| Pump Type | load sensing pump |
| Pump Flow Capacity | 39.7 gal/min (150 L/min) |
| Relief Valve Pressure | 3916.1 psi (27000 kPa) |
