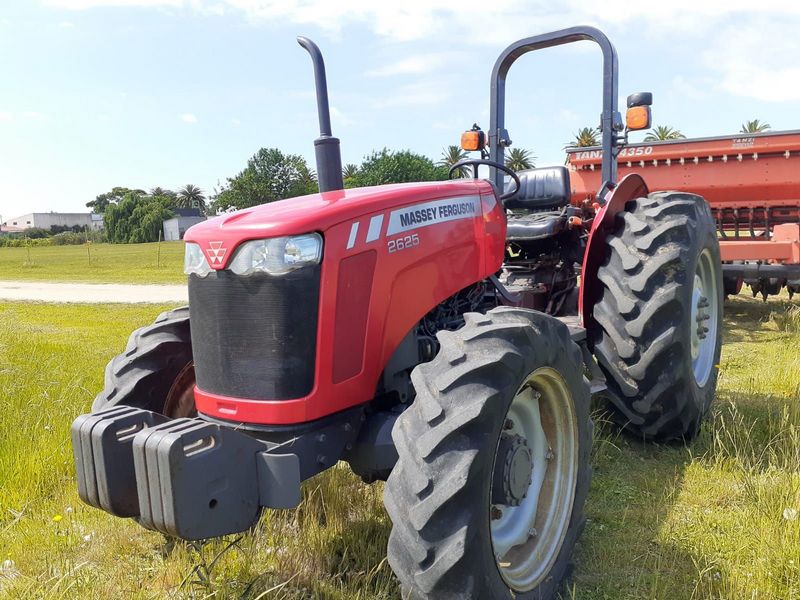

Massey Ferguson 2625
Browse All Massey Ferguson or Utility Tractor Models
Contents:
Dimensions
| Overall Length | 138.19 in (3510 mm) |
| Wheelbase | 6.73 ft in (2050 mm) |
| Overall Width | 6.09 ft in (1854 mm) |
| Ground Clearance | 13.78 in (350 mm) |
| Height To Top Of Rops | 94.3 in (2395 mm) |
| Height With Rops | 7.86 ft in (2395 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | SJ436E |
| Gross Power | 63 hp (47 kw) |
| Pto Power | 54 hp (40.3 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 219.7 cu in (3.6 L) |
| Aspiration | Natural |
Operational
| Fuel Capacity | 11.1 gal (42.1 L) |
| Tire Size Front - 2wd / 4wd | 16.9x28 |
Electrical
| Alternator | 36 amps |
| Battery | 622 |
Power Take-Off(Pto)
| Pto Speed | 540 rpm |
| Standard | Live |
| Optional | Independent |
| Power Take-Off(Pto) Type | Dry Dual Disc |
| Pto Speeds @ Engine Rpm | 1790 |
Transmission
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 2 |
| Optional | 8F x 8R Shuttle |
Weights
| Shipping | 5688 lb (2580 kg) |
Hydraulic System
| Hydraulic System Type | Open Center and Modified Closed Center |
| Auxiliary Hydraulic Flow | 11.2 gal/min (42.4 L/min) |
| Steering Pump | 6.9 gal/min (26.2 L/min) |
| Pump Type | Gear and Scotch Yoke |
| Pump Flow Capacity | 22.8 gal/min (86.4 L/min) |
| Number Of Remote Control Valves | 1 or 2 Rear Valves |
3-Point Hitch
| Extendable Lower Links | Optiona |
| Category | Category I and II Cross Drilled Ball Ends |
| Asae Lift Capacity @ 24” | 4519.5 lb (2050 kg) |
| Stabilizers | Chain Type |
