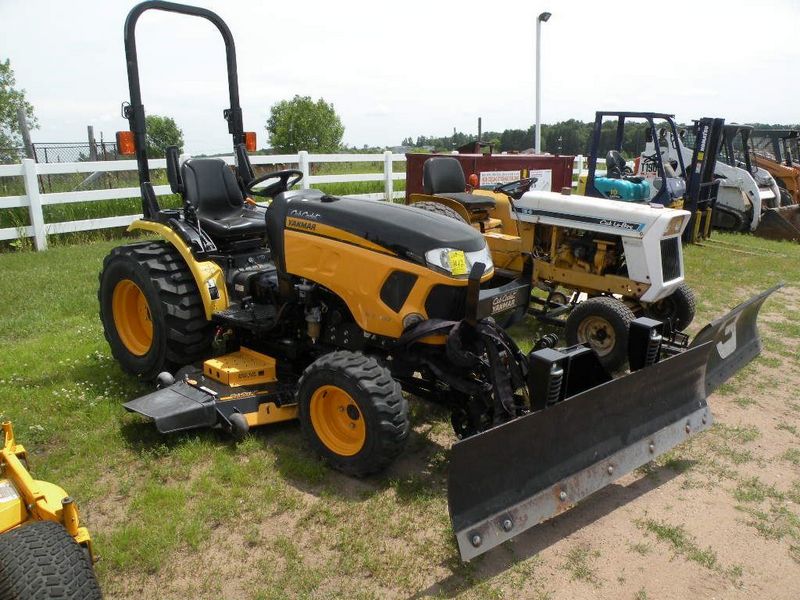

Yanmar SX3100
Browse All Yanmar or Utility Tractor Models
Contents:
Dimensions
| Overall Length | 109 in (2768.6 mm) |
| Wheelbase | 65.2 ft in (19872.96 mm) |
| Overall Width | 51.6 ft in (15727.68 mm) |
| Ground Clearance | 10.6 in (269.24 mm) |
| Weight | 2030 lb (920.8 kg) |
Engine
| Number Of Cylinders | 3 |
| Gross Power | 31.2 hp (23.3 kw) |
| Net Power | 30 hp (22.4 kw) |
| Lubrication | Full pressure |
| Cooling System | Liquid cooled |
| Air Cleaner | Dual dry |
| Pto Power | 23.5 hp (17.6 kw) |
| Power Measured @ | 27500 rpm |
| Displacement | 100.2 cu in (1.7 L) |
| Bore | 3.5 in (88 mm) |
| Stroke | 3.6 in (90 mm) |
Capacities
| Fuel Tank | 7.1 gal (26.9 L) |
| Cooling System | 0.6 gal (2 L) |
| Transmission | 4.6 gal (17.5 L) |
| Engine Oil | 0.9 gal (3.5 L) |
Operational
| Tire Size Front - 2wd / 4wd | 23 x 8.5 – 12 in |
| Rear Tires Size 2wd/4wd | 14 – 17.5 in |
Power Take-Off(Pto)
| Pto Speed Rear | 547 rpm |
| Pto Type | Continuous live |
| Mid-Pto Speed | 2100 rpm |
Transmission
| Transmission Type | Synchronized shuttle |
| Max Speed | 14.8 mph (23.9 km/h) |
Hydraulic System
| Hydraulic System Type | Open center |
| Pump Flow Capacity | 4.8 gal/min (18.2 L/min) |
3-Point Hitch
| 3-Point Hitch | Category 1 |
| Lift Capacity @ 24” | 1209 lb (548.4 kg) |
