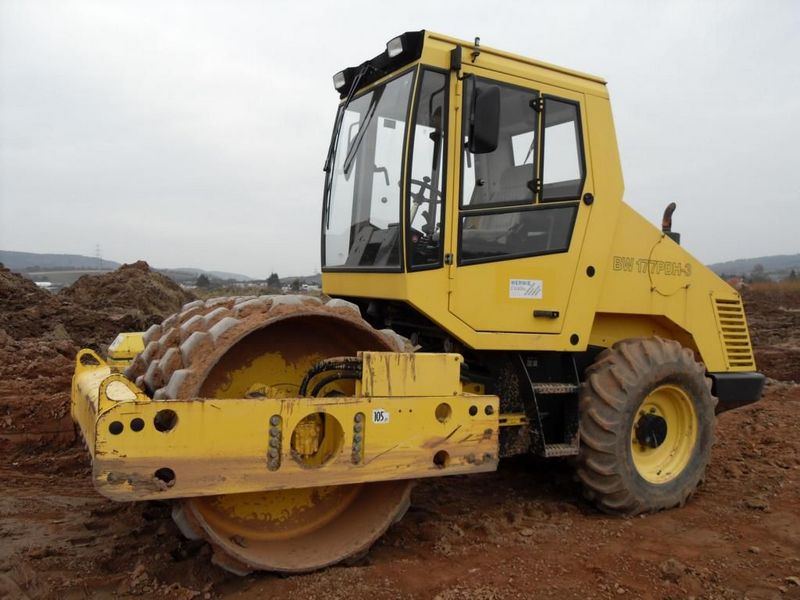

Bomag BW177PDH-3
Contents:
| Overall Length W/O Blade | 15.3 ft in (4662 mm) |
| Height To Top Of Cab | 9.31 ft in (2835 mm) |
| Wheelbase | 8.18 in (2492 mm) |
| Ground Clearance | 13.94 in (354 mm) |
| Drum Diameter | 47.56 in (1208 mm) |
| Number Of Pads | 104 |
| Pad Height | 3.15 in (80 mm) |
| Pad Surface Area | 15.3 in2 (9870.95 cm2) |
| Vibration Frequency 1 | 30 Hz |
| Vibratory Frequency 2 | 40 Hz |
| Nominal Amplitude - Low | 0.04 in (0.9 mm) |
| Centrifugal Force - Low | 26977.08 lb (120 kN) |
| Drum Width | 66.38 in (1686 mm) |
| Nominal Amplitude - High | 0.07 in (1.7 mm) |
| Centrifugal Force - High | 30349.21 lb (135 kN) |
| Engine Make | 2347 |
| Engine Model | QSB4.5-110 |
| Gross Power | 107.3 hp (80 kw) |
| Operating Weight | 16622.9 lb (7540 kg) |
| Fuel Capacity | 33.1 gal (125 L) |
| Max Speed | 6.9 mph (11 km/h) |
| Tires | 14.9-24 6PR |
| Operating Voltage | 12 V |
