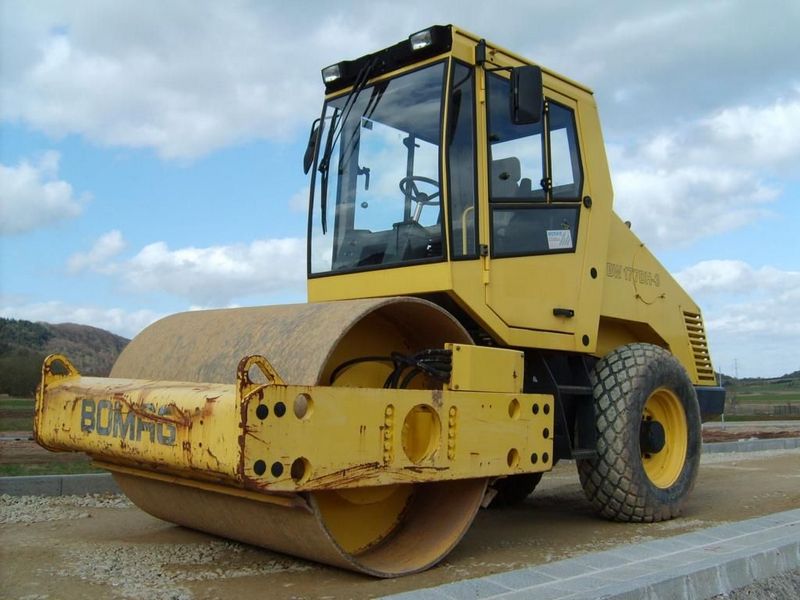

Bomag BW177DH3
Contents:
| Overall Length | 15.3 in (4662 mm) |
| Height To Top Of Cab | 9.31 ft in (2835 mm) |
| Wheelbase | 8.18 in (2492 mm) |
| Ground Clearance | 13.94 in (354 mm) |
| Drum Diameter - Front | 4.01 ft in (1222 mm) |
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | QSB4.5-110 |
| Gross Power | 110 hp (82 kw) |
| Net Power | 107.3 hp (80 kw) |
| Power Measured @ | 2200 rpm |
| Operating Weight | 16226.1 lb (7360 kg) |
| Fuel Capacity | 33.1 gal (125 L) |
| Max Speed | 6.9 mph (11 km/h) |
| Tires *If Applicable | 14.9-24-AWT 6PR |
| Operating Voltage | 12 V |
| Drum Width | 66.4 in (1686 mm) |
| Drum Diameter | 48.2 in (1222 mm) |
| Static Linear Load | 335.7 lb/in (23.6 kg/cm) |
| Vibration Frequency 1 | 30 Hz |
| Nominal Amplitude - High | 0.1 in (1.8 mm) |
| Vibration Frequency 2 | 40 Hz |
| Nominal Amplitude - Low | 0.1 in (0.9 mm) |
| Centrifugal Force - High | 30349.3 lb (135 kN) |
| Centrifugal Force - Low | 26977.1 lb (120 kN) |
