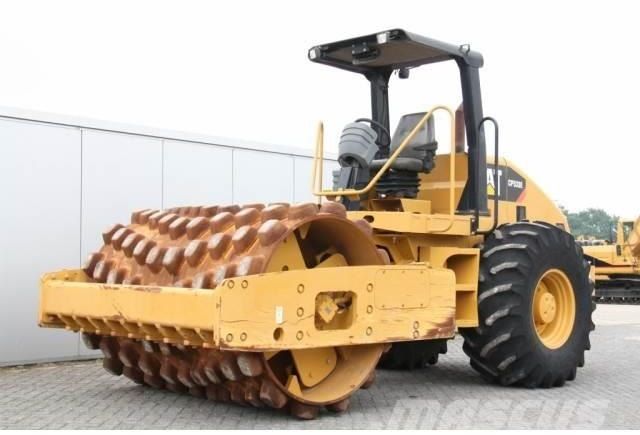

Caterpillar CP533E
Browse All Caterpillar or Vibratory Compactor Models
Contents:
Dimensions
| Overall Length W/O Blade | 18.08 ft in (5510 mm) |
| Width Over Tires | 7.52 ft in (2290 mm) |
| Height To Top Of Cab | 10.08 ft in (3070 mm) |
| Wheelbase | 9.52 in (2900 mm) |
| Ground Clearance | 21.38 in (543 mm) |
Drum
| Drum Diameter | 50.99 in (1295 mm) |
| Pad Height | 5 in (127 mm) |
| Pad Surface Area | 13.86 in2 (8940 cm2) |
| Vibration Frequency 1 | 31.9 Hz |
| Nominal Amplitude - Low | 0.04 in (0.85 mm) |
| Centrifugal Force - Low | 29899.59 lb (133 kN) |
| Drum Width | 84.02 in (2134 mm) |
| Nominal Amplitude - High | 0.07 in (1.7 mm) |
| Centrifugal Force - High | 59799.18 lb (266 kN) |
| Number Of Pads | 140 |
Engine
| Engine Make | 2236 |
| Engine Model | 3054C |
| Gross Power | 130.1 hp (97 kw) |
| Net Power | 124.8 hp (93 kw) |
| Displacement | 268.6 cu in (4.4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 25750 lb (11680 kg) |
| Fuel Capacity | 52.9 gal (200 L) |
| Cooling System Fluid Capacity | 5.1 gal (19 L) |
| Engine Oil Capacity | 2.4 gal (9 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Max Speed | 7.5 mph (12 km/h) |
| Tires | 23.1x26 14ply |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
