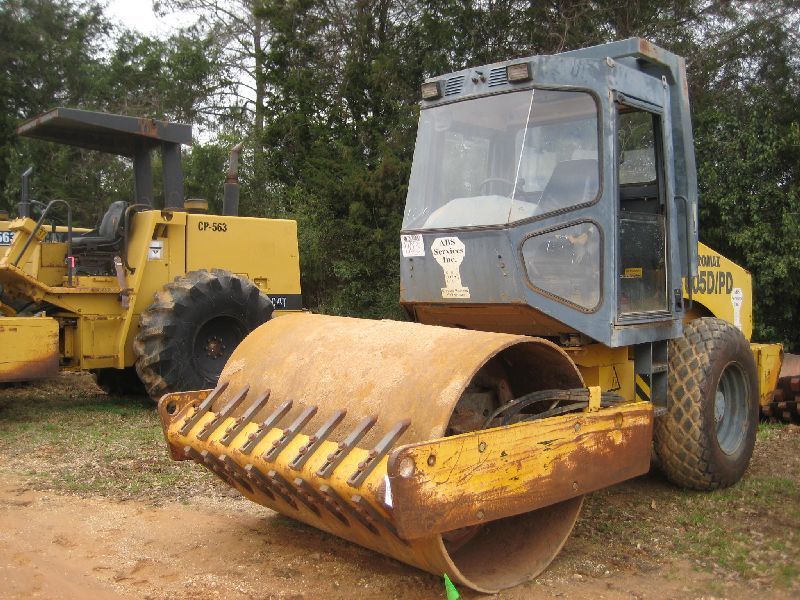

Vibromax 605PD
Contents:
| Overall Length W/O Blade | 15.65 ft in (4770 mm) |
| Height To Top Of Cab | 9.91 ft in (3020 mm) |
| Wheelbase | 8.57 in (2610 mm) |
| Ground Clearance | 14.97 in (380 mm) |
| Drum Diameter | 43.31 in (1100 mm) |
| Pad Surface Area | 17.5 in2 (11290.3 cm2) |
| Vibration Frequency 1 | 29 Hz |
| Vibratory Frequency 2 | 36 Hz |
| Number Of Pads | 96 |
| Drum Width | 68.9 in (1750 mm) |
| Nominal Amplitude - High | 0.08 in (1.93 mm) |
| Centrifugal Force - High | 28775.55 lb (128 kN) |
| Pad Height | 3.94 in (100 mm) |
| Engine Make | 2347 |
| Engine Model | 4B3.9C |
| Gross Power | 76 hp (56.7 kw) |
| Displacement | 240 cu in (4 L) |
| Operating Weight | 14975 lb (6792.6 kg) |
| Fuel Capacity | 60.8 gal (230 L) |
| Max Speed | 7.2 mph (11.6 km/h) |
| Tires | 14.9x24 6PR |
