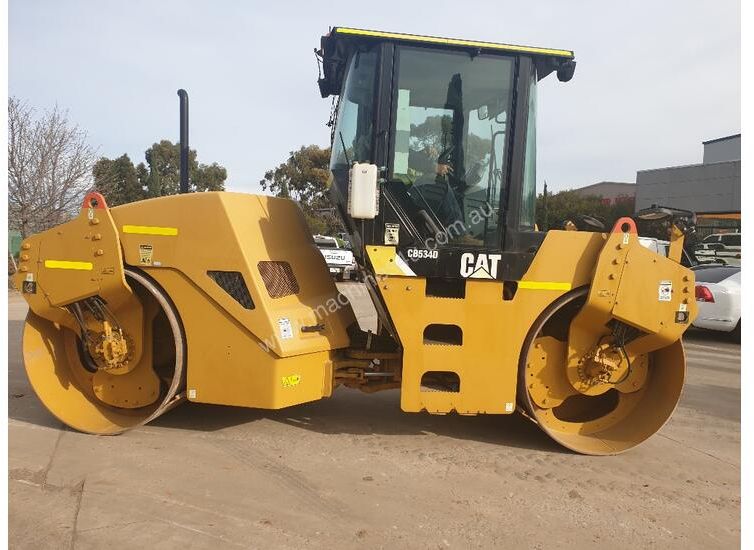

Caterpillar CB534D
Browse All Caterpillar or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 16.21 in (4940 mm) |
| Overall Width | 6.07 ft in (1850 mm) |
| Height To Top Of Cab | 10.18 ft in (3100 mm) |
| Wheelbase | 11.95 in (3640 mm) |
| Ground Clearance | 12.05 in (306 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3054C |
| Gross Power | 130.1 hp (97 kw) |
| Net Power | 124.8 hp (93 kw) |
| Displacement | 268.6 cu in (4.4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 23038.4 lb (10450 kg) |
| Fuel Capacity | 57.9 gal (219 L) |
| Cooling System Fluid Capacity | 5.3 gal (20 L) |
| Engine Oil Capacity | 2.4 gal (9 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Max Speed | 8.1 mph (13 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 80 amps |
Drum
| Drum Width | 67 in (1700 mm) |
| Drum Diameter | 51.2 in (1300 mm) |
| Static Linear Load | 436.7 lb/in (30.7 kg/cm) |
| Vibration Frequency 1 | 42 Hz |
| Nominal Amplitude - High | 0.1 in (0.9 mm) |
| Nominal Amplitude - Med High | 0.1 in (1 mm) |
| Nominal Amplitude - Med | 0.1 in (0.8 mm) |
| Nominal Amplitude - Med Low | 0.1 in (0.6 mm) |
| Vibration Frequency 2 | 42 Hz |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 20907.3 lb (93 kN) |
| Centrifugal Force - Med High | 21806.5 lb (97 kN) |
| Centrifugal Force - Med | 17310.3 lb (77 kN) |
| Centrifugal Force - Med Low | 13039 lb (58 kN) |
| Centrifugal Force - Low | 8093.2 lb (36 kN) |
