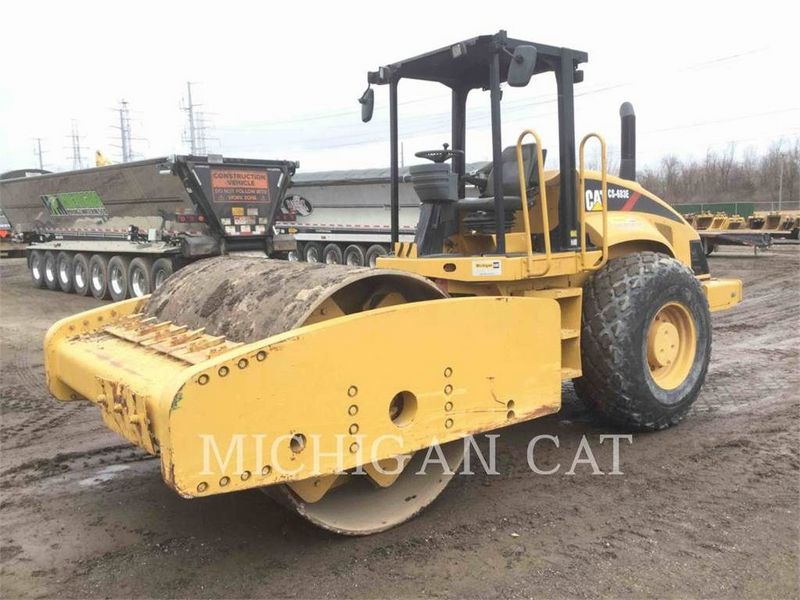

Caterpillar CS683E
Browse All Caterpillar or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 19.69 in (6000 mm) |
| Overall Width | 7 ft in (2133.6 mm) |
| Height To Top Of Cab | 9.91 ft in (3020 mm) |
| Wheelbase | 9.52 in (2900 mm) |
| Ground Clearance | 20.67 in (525 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3056E |
| Gross Power | 173 hp (129 kw) |
| Net Power | 165 hp (123 kw) |
| Displacement | 366.2 cu in (6 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 41447 lb (18800 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Cooling System Fluid Capacity | 9.3 gal (35 L) |
| Engine Oil Capacity | 3.7 gal (14 L) |
| Hydraulic System Fluid Capacity | 21.2 gal (80 L) |
| Max Speed | 7.1 mph (11.3 km/h) |
| Tires *If Applicable | 597x600mm |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
Drum
| Drum Width | 84.1 in (2134 mm) |
| Drum Diameter | 60 in (1524 mm) |
| Static Linear Load | 886.2 lb/in (62.3 kg/cm) |
| Vibration Frequency 1 | 30 Hz |
| Nominal Amplitude - High | 0.1 in (1.8 mm) |
| Nominal Amplitude - Low | 0.1 in (0.9 mm) |
| Centrifugal Force - High | 74636.6 lb (332 kN) |
| Centrifugal Force - Low | 37318.3 lb (166 kN) |
