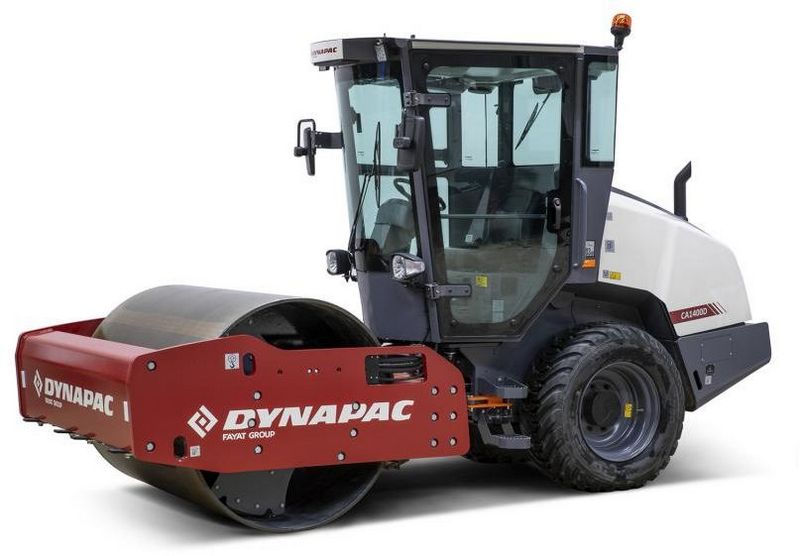

Dynapac CA1400D
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 14.75 in (374.65 mm) |
| Overall Width | 4.5 ft in (1371.6 mm) |
| Wheelbase | 87 in (2209.81 mm) |
| Ground Clearance | 14 in (355.6 mm) |
| Gradeability | 56 % |
| Overhang Front | 0.32 ft in (95.25 mm) |
| Overhang Rear | 0.32 ft in (95.25 mm) |
| Turning Radius - Inside | 9.5 ft in (2895.6 mm) |
| Turning Radius - Outside | 15 ft in (4572 mm) |
| Height With Rops | 8.84 ft in (2692.4 mm) |
| Curb Clearance | 14 in (355.6 mm) |
Engine
| Engine Make | Kubota |
| Engine Model | V 3307 CR-TE4 |
| Engine Type | Water cooled turbo Diesel |
| Gross Power | 75 hp (56 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight Rops | 14350 lb (6509.1 kg) |
| Operating Weight | 15900 lb (7212.2 kg) |
| Fuel Capacity | 31 gal (117.4 L) |
| Max Speed | 6.2 mph (10 km/h) |
| Tire Size | 400/60-22.5 flotation |
Drum
| Drum Thickness | 0.9 in (22.1 mm) |
| Drum Width | 66 in (1676.4 mm) |
| Drum Diameter | 48 in (1219.2 mm) |
| Centrifugal Force - High | 25600 lb (113.9 kN) |
| Centrifugal Force - Low | 12400 lb (55.2 kN) |
