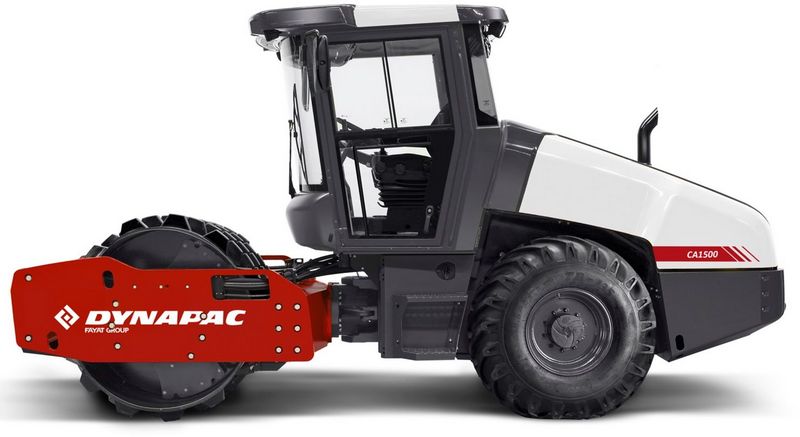

Dynapac CA1500PD
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 17.33 in (440 mm) |
| Overall Width | 4.5 ft in (1371.6 mm) |
| Wheelbase | 106 in (2692.4 mm) |
| Ground Clearance | 13 in (330.2 mm) |
| Gradeability | 55 % |
| Overhang Front | 0.34 ft in (101.6 mm) |
| Overhang Rear | 0.34 ft in (101.6 mm) |
| Turning Radius - Inside | 10 ft in (3048 mm) |
| Turning Radius - Outside | 16 ft in (4876.8 mm) |
| Height With Rops | 8.92 ft in (2717.81 mm) |
| Curb Clearance | 14 in (355.6 mm) |
Engine
| Engine Make | Cummins |
| Engine Model | QSB3.3 |
| Engine Type | Water cooled turbo Diesel |
| Gross Power | 99.3 hp (74 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight Rops | 15500 lb (7030.7 kg) |
| Operating Weight | 17000 lb (7711.1 kg) |
| Fuel Capacity | 50 gal (189.3 L) |
| Max Speed | 7.5 mph (12.1 km/h) |
| Tire Size | 14.9 x 24 TL |
Drum
| Drum Thickness | 0.7 in (17.1 mm) |
| Drum Width | 66 in (1676.4 mm) |
| Drum Diameter | 48 in (1219.2 mm) |
| Pad Height | 3 in (76.2 mm) |
| Nominal Amplitude - High | 0.1 in (1.9 mm) |
| Pad Surface Area | 13 in2 (83.9 cm2) |
| Nominal Amplitude - Low | 0.1 in (0.8 mm) |
| Centrifugal Force - High | 29900 lb (133.1 kN) |
| Centrifugal Force - Low | 16200 lb (72.1 kN) |
