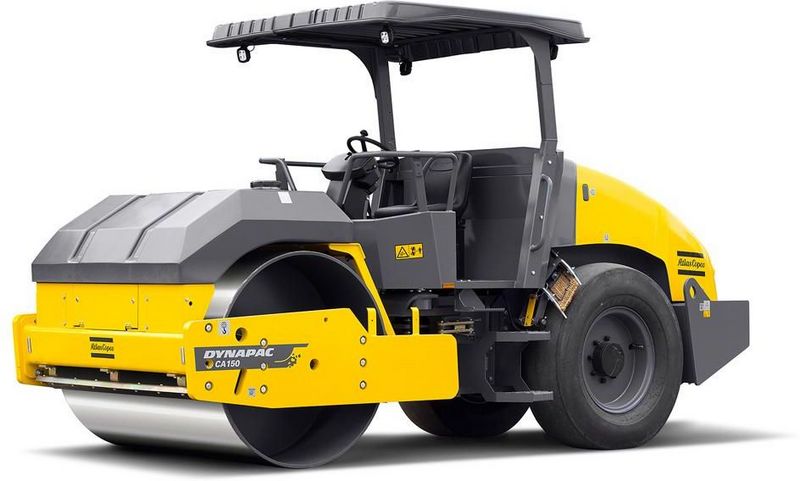

Dynapac CA150AD
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 188.04 in (4776 mm) |
| Overall Width | 4.5 ft in (1371.6 mm) |
| Wheelbase | 100.2 in (2545 mm) |
| Ground Clearance | 12.92 in (328 mm) |
| Height With Rops | 9.27 ft in (2825 mm) |
| Gradeability | 55 % |
| Height With Out Rops | 6.73 ft in (2051 mm) |
| Curb Clearance | 14.41 in (366 mm) |
Engine
| Engine Make | Cummins |
| Engine Model | BT3.3 |
| Engine Type | Water cooled turbo Diesel |
| Gross Power | 80.5 hp (60 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight Rops | 7600 lb (3447.4 kg) |
| Operating Weight | 8300 lb (3764.9 kg) |
| Fuel Capacity | 225 gal (851.8 L) |
| Max Speed | 5 mph (8.1 km/h) |
| Tire Size | 13.00-24 |
Drum
| Drum Thickness | 0.9 in (22 mm) |
| Drum Width | 66.2 in (1680 mm) |
| Drum Diameter | 48 in (1219 mm) |
| Nominal Amplitude - High | 0.1 in (1.9 mm) |
| Nominal Amplitude - Low | 0.1 in (0.8 mm) |
| Centrifugal Force - High | 25853.1 lb (115 kN) |
| Centrifugal Force - Low | 13039 lb (58 kN) |
