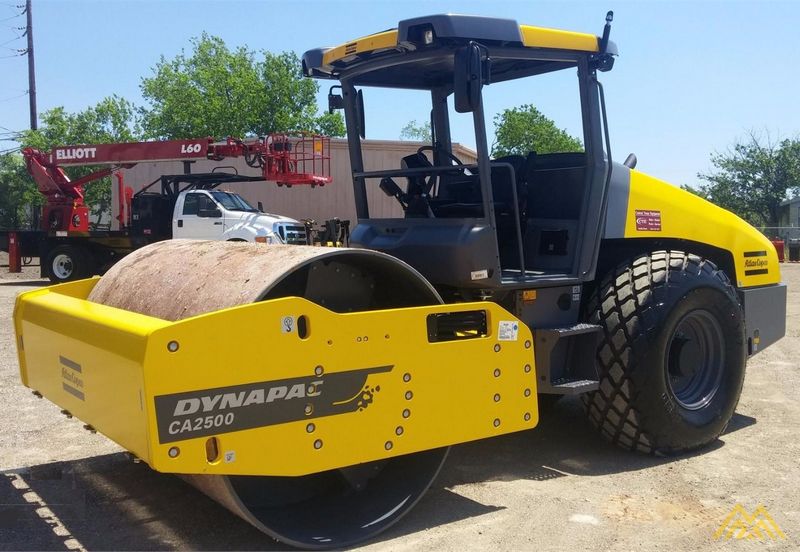

Dynapac CA2500D
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 236 in (5994.4 mm) |
| Wheelbase | 118 in (2997.2 mm) |
| Ground Clearance | 18 in (457.2 mm) |
| Curb Clearance | 18 in (457.2 mm) |
| Overhang Rear | 0.34 ft in (101.6 mm) |
| Turning Radius - Inside | 10.84 ft in (3301.99 mm) |
| Turning Radius - Outside | 17.92 ft in (5461.02 mm) |
| Overhang Front | 0.34 ft in (101.6 mm) |
| Gradeability | 51 % |
| Height With Rops | 9.42 ft in (2870.21 mm) |
Engine
| Engine Make | Cummins |
| Engine Model | QSF3.8 |
| Engine Type | Water cooled turbo Diesel |
| Gross Power | 119.4 hp (89 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Def Tank Capacity | 5 gal (19 L) |
| Operating Weight Rops | 49163.1 lb (22300 kg) |
| Operating Weight | 57761.2 lb (26200 kg) |
| Fuel Capacity | 72 gal (272.6 L) |
| Max Speed | 5 mph (8.1 km/h) |
| Tire Size | 23,1 x 26 AW |
Drum
| Drum Thickness | 1 in (25.4 mm) |
| Drum Width | 84 in (2133.6 mm) |
| Drum Diameter | 59 in (1498.6 mm) |
| Static Linear Load | 146 lb/in (26.1 kg/cm) |
| Pad Height | 4 in (101.6 mm) |
| Pad Surface Area | 22.6 in2 (145.9 cm2) |
| Nominal Amplitude - High | 0.1 in (1.9 mm) |
| Nominal Amplitude - Low | 0.1 in (0.9 mm) |
| Centrifugal Force - High | 56210 lb (250.1 kN) |
| Centrifugal Force - Low | 29230 lb (130.1 kN) |
