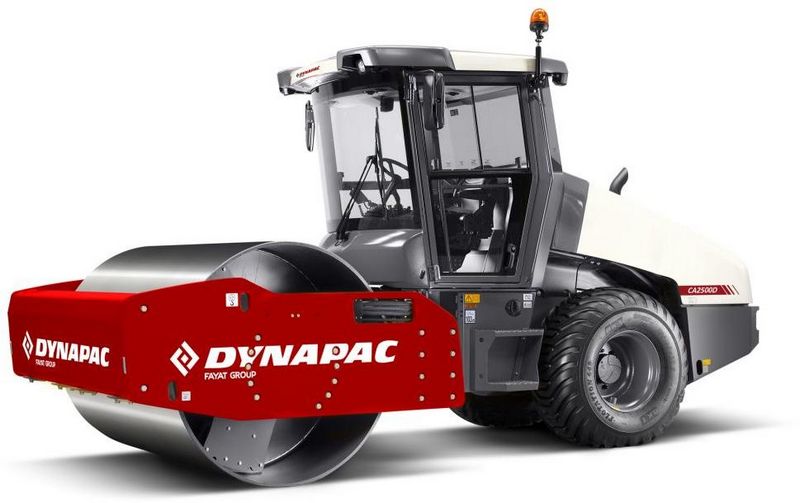

Dynapac CA2500D (3.3)
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 218.9 in (5560 mm) |
| Wheelbase | 111.82 in (2840 mm) |
| Ground Clearance | 12.6 in (320 mm) |
| Curb Clearance | 16.93 in (430 mm) |
| Overhang Rear | 0.35 ft in (105 mm) |
| Turning Radius - Inside | 10.18 ft in (3100 mm) |
| Turning Radius - Outside | 17.72 ft in (5400 mm) |
| Overhang Front | 0.35 ft in (105 mm) |
| Gradeability | 51 % |
| Height With Rops | 9.22 ft in (2810 mm) |
Engine
| Engine Make | Cummins |
| Engine Model | QSB3.3 |
| Engine Type | Water cooled turbo Diesel |
| Gross Power | 110 hp (82 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight Rops | 22046.3 lb (10000 kg) |
| Operating Weight | 22928.1 lb (10400 kg) |
| Fuel Capacity | 190 gal (719.3 L) |
| Max Speed | 8 mph (12.9 km/h) |
| Tire Size | 550/60-22.5 |
Drum
| Drum Thickness | 1 in (25 mm) |
| Drum Width | 83.9 in (2130 mm) |
| Drum Diameter | 59.1 in (1500 mm) |
| Static Linear Load | 145.6 lb/in (26 kg/cm) |
| Nominal Amplitude - High | 0.1 in (1.8 mm) |
| Pad Surface Area | 84 in2 (542 cm2) |
| Nominal Amplitude - Low | 0.1 in (0.9 mm) |
| Centrifugal Force - High | 46085.9 lb (205 kN) |
| Centrifugal Force - Low | 22480.9 lb (100 kN) |
