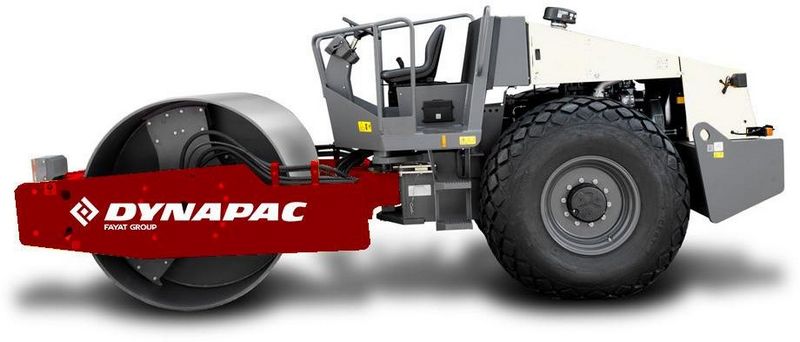

Dynapac CA250P
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 218.51 in (5550 mm) |
| Wheelbase | 113.35 in (2879 mm) |
| Ground Clearance | 17.84 in (453 mm) |
| Height With Out Rops | 7.19 ft in (2190 mm) |
| Height With Rops | 9.69 ft in (2952 mm) |
| Gradeability | 38 % |
| Overhang Front | 0.32 ft in (97 mm) |
| Overhang Rear | 0.32 ft in (97 mm) |
| Turning Radius - Inside | 10.18 ft in (3100 mm) |
| Turning Radius - Outside | 17.72 ft in (5400 mm) |
| Curb Clearance | 15.75 in (400 mm) |
Engine
| Engine Make | Cummins |
| Engine Model | 4BT 3.9-C |
| Engine Type | Water cooled turbo Diesel |
| Gross Power | 102 hp (76 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Max Speed | 4.4 mph (7 km/h) |
| Tire Size | 23,1x26 |
Drum
| Drum Thickness | 1 in (25 mm) |
| Drum Width | 83.9 in (2130 mm) |
| Drum Diameter | 60 in (1523 mm) |
