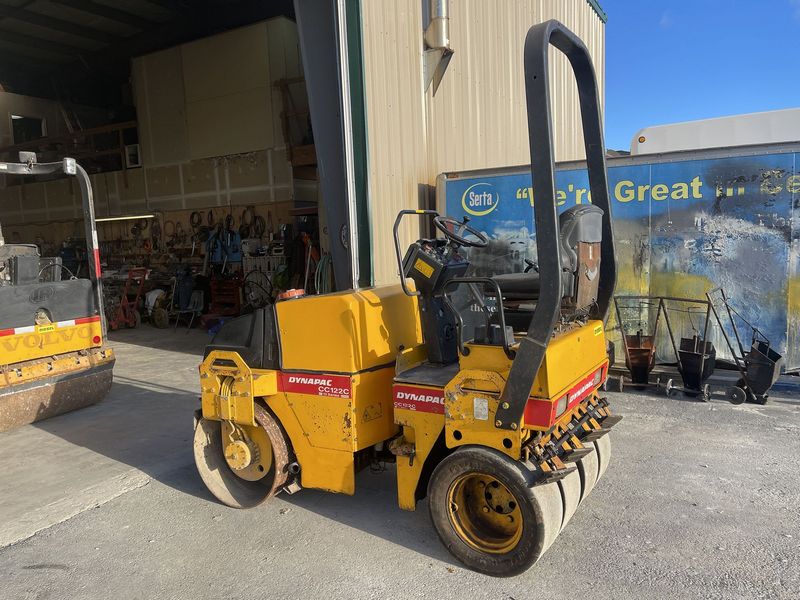

Dynapac CC122C
Contents:
| Overall Length | 8.04 in (2450 mm) |
| Overall Width | 3.88 ft in (1180 mm) |
| Height To Top Of Cab | 8.67 ft in (2640 mm) |
| Wheelbase | 5.63 in (1715 mm) |
| Ground Clearance | 6.89 in (175 mm) |
| Drum Diameter - Front | 2.24 ft in (682 mm) |
| Engine Make | 2349 |
| Engine Model | D2011 L02 I |
| Gross Power | 29.6 hp (22 kw) |
| Power Measured @ | 2800 rpm |
| Operating Weight | 5357.3 lb (2430 kg) |
| Fuel Capacity | 13.3 gal (50 L) |
| Max Speed | 4.4 mph (7 km/h) |
| Drum Width | 47.3 in (1200 mm) |
| Drum Diameter | 26.9 in (682 mm) |
| Static Linear Load | 185 lb/in (13 kg/cm) |
| Vibration Frequency 1 | 58 Hz |
| Nominal Amplitude - Med | 0.1 in (0.5 mm) |
| Centrifugal Force - Med | 6069.9 lb (27 kN) |
