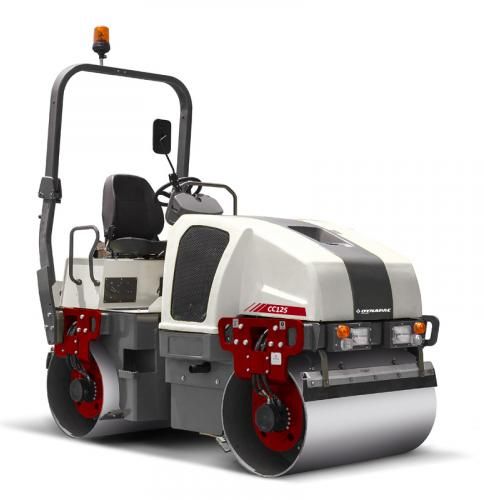

Dynapac CC125
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 97.92 in (2487 mm) |
| Overall Width | 4.15 ft in (1262 mm) |
| Height To Top Of Cab | 8.7 ft in (2649 mm) |
| Wheelbase | 71.3 in (1811 mm) |
| Ground Clearance | 7.21 in (183 mm) |
| Overhang Rear | 0.11 ft in (31 mm) |
| Turning Radius - Inside | 9.52 ft in (2900 mm) |
| Turning Radius - Outside | 13.46 ft in (4100 mm) |
| Overhang Front | 0.11 ft in (31 mm) |
Engine
| Engine Make | Mahindra |
| Engine Model | 275DI |
| Gross Power | 39 hp (29.1 kw) |
| Power Measured @ | 2600 rpm |
| Aspiration | watercooled |
Operational
| Operating Weight Rops | 3100 lb (1406.2 kg) |
| Oscillating Angle | 10 degrees |
| Operating Weight | 3200 lb (1451.5 kg) |
| Fuel Capacity | 13.3 gal (50 L) |
| Water Spray Tank Fluid Capacity | 42.3 gal (160 L) |
| Max Speed | 7.5 mph (12 km/h) |
| Steering Angle | 29 degrees |
Drum
| Drum Thickness | 0.6 in (13 mm) |
| Drum Width | 47.3 in (1200 mm) |
| Drum Diameter | 26.9 in (682 mm) |
| Static Linear Load | 70 lb/in (12.5 kg/cm) |
| Vibration Frequency 1 | 58 Hz |
| Nominal Amplitude - High | 0.1 in (0.5 mm) |
| Centrifugal Force - High | 6069.9 lb (27 kN) |
Brakes
| Parking Brake | Failsafe multidisc brake |
| Service Brake | Hydrostatic in forward and reverse lever |
