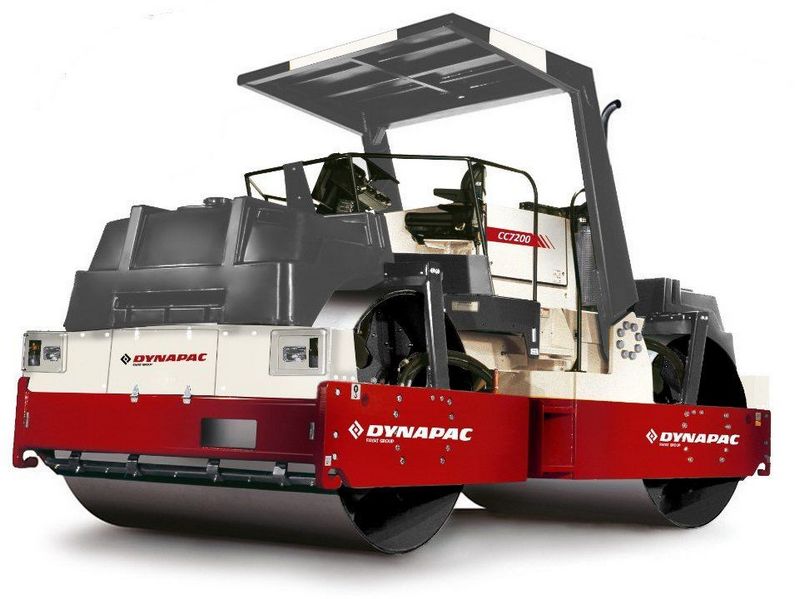

Dynapac CC7200
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 222.56 in (5653 mm) |
| Overall Width | 6.99 ft in (2130 mm) |
| Height To Top Of Cab | 11.26 ft in (3430 mm) |
| Wheelbase | 147.8 in (3754 mm) |
| Ground Clearance | 15.75 in (400 mm) |
| Turning Radius - Inside | 19.53 ft in (5950 mm) |
| Turning Radius - Outside | 26.51 ft in (8080 mm) |
| Gradeability | 31 % |
Engine
| Emissions Certification | Tier 4 |
| Engine Make | Cummins |
| Engine Model | QSB 6.7 IIIA |
| Engine Type | Water cooled with after cooler |
| Gross Power | 228 hp (170 kw) |
| Power Measured @ | 2100 rpm |
Operational
| Operating Weight Rops | 39650.2 lb (17985 kg) |
| Oscillating Angle | 5 degrees |
| Operating Weight | 37037.7 lb (16800 kg) |
| Fuel Capacity | 88.5 gal (335 L) |
| Water Spray System Fluid Capacity | 354 gal (1340 L) |
| Max Speed | 6.9 mph (11 km/h) |
| Steering Angle | 30 degrees |
Drum
| Drum Thickness | 1 in (23 mm) |
| Drum Width | 83.9 in (2130 mm) |
| Drum Diameter | 60.2 in (1527 mm) |
| Static Linear Load | 216.8 lb/in (38.7 kg/cm) |
| Vibration Frequency 1 | 45 Hz |
| Nominal Amplitude - High | 0.1 in (0.9 mm) |
| Vibration Frequency 2 | 45 Hz |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 48334 lb (215 kN) |
| Centrifugal Force - Low | 22930.6 lb (102 kN) |
Brakes
| Parking Brake | Failsafe multidisc brake in drum and wheel motors. |
| Service Brake | Hydrostatic in forward and reverse lever |
