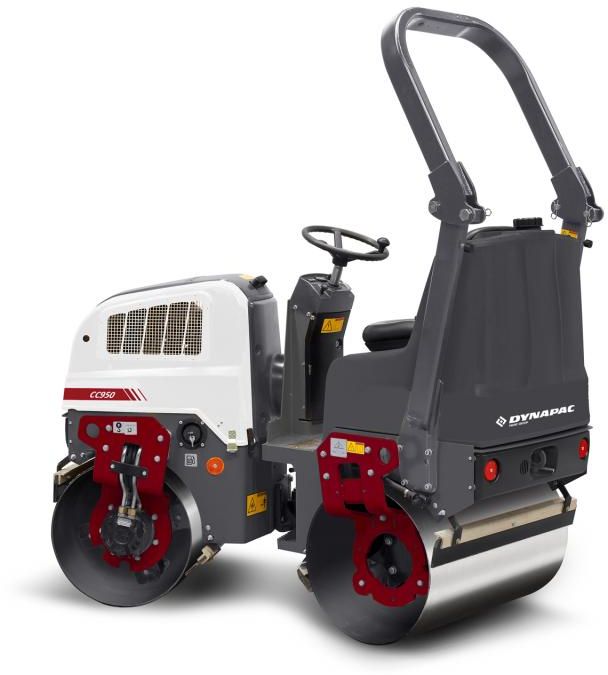

Dynapac CC950
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 83 in (2108.2 mm) |
| Overall Width | 3.17 ft in (965.2 mm) |
| Height To Top Of Cab | 7.59 ft in (2311.4 mm) |
| Wheelbase | 53 in (1346.2 mm) |
| Ground Clearance | 10.04 in (255 mm) |
| Overhang Rear | 0.09 ft in (25.4 mm) |
| Turning Radius - Outside | 9 ft in (2743.2 mm) |
| Overhang Front | 0.09 ft in (25.4 mm) |
Engine
| Engine Make | Kubota |
| Engine Model | D722-E4B |
| Gross Power | 20.3 hp (15.2 kw) |
| Power Measured @ | 3600 rpm |
| Aspiration | watercooled |
Operational
| Operating Weight Rops | 3000 lb (1360.8 kg) |
| Oscillating Angle | 13 degrees |
| Operating Weight | 3100 lb (1406.2 kg) |
| Fuel Capacity | 6 gal (22.8 L) |
| Water Spray Tank Fluid Capacity | 50 gal (189.3 L) |
| Max Speed | 5 mph (8.1 km/h) |
| Steering Angle | 34 degrees |
Drum
| Drum Thickness | 0.4 in (10.2 mm) |
| Drum Width | 35 in (889 mm) |
| Drum Diameter | 23 in (584.2 mm) |
| Static Linear Load | 40 lb/in (7.2 kg/cm) |
| Vibration Frequency 1 | 70 Hz |
| Nominal Amplitude - High | 0.1 in (0.5 mm) |
| Centrifugal Force - High | 3800 lb (17 kN) |
Brakes
| Parking Brake | Failsafe brake in both drums |
| Service Brake | Hydrostatic in forward and reverse lever |
