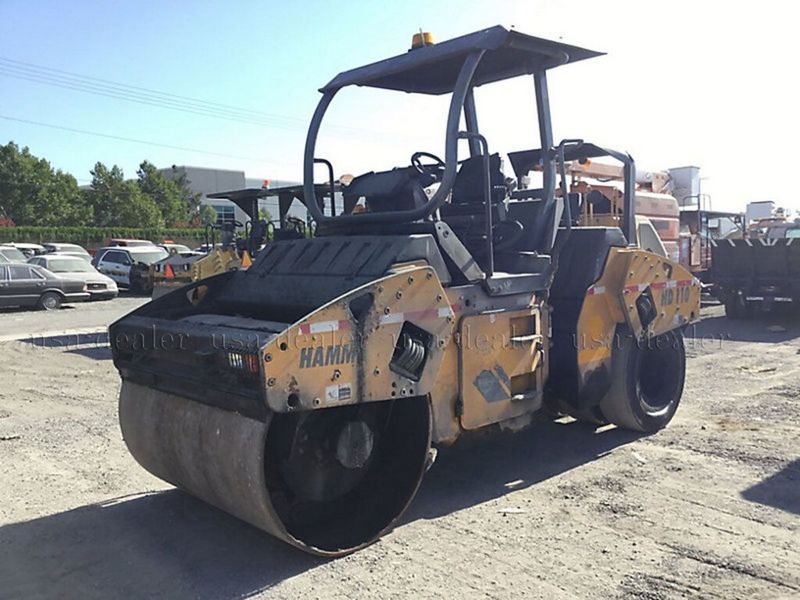

Hamm HD110K
Browse All Hamm or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 15.1 in (4600 mm) |
| Overall Width | 5.94 ft in (1810 mm) |
| Height To Top Of Cab | 10.04 ft in (3060 mm) |
| Wheelbase | 133.86 in (3400 mm) |
| Ground Clearance | 31.11 in (790 mm) |
| Maximum Width | 5741.47 ft in (1750 m) |
| Turning Radius - Inside | 13 ft in (3961 mm) |
Tyres
| Size Of Tyres, Rear | 11.00-20 |
| Width Over Tyres, Rear | 63.8 in (1620 mm) |
| Number Of Tyres, Rear | 4 |
Speeds
| Speed - Working Gear | 4.6 mph (7.4 km/h) |
| Speed - Transportation Gear | 9.2 mph (14.8 km/h) |
Engine
| Emissions Certification | EPA Tier 3 |
| Number Of Cylinders | 4 |
| Engine Make | DEUTZ |
| Engine Model | TCD 2012 L04 2V |
| Gross Power | 134.2 hp (100 kw) |
| Net Power | 134.2 hp (100 kw) |
| Power Measured @ | 2300 rpm |
Operational
| Operating Weight Cabin | 20547.1 lb (9320 kg) |
| Operating Weight Rops | 19764.5 lb (8965 kg) |
| Oscillating Angle | 10 degrees |
| Operating Weight | 26213 lb (11890 kg) |
| Fuel Capacity | 48.9 gal (185 L) |
| Water Spray System Fluid Capacity | 237.8 gal (900 L) |
Drum
| Drum Thickness | 0.9 in (22 mm) |
| Drum Type | Smooth/non-divided |
| Drum Width | 66.2 in (1680 mm) |
| Drum Diameter | 47.3 in (1200 mm) |
| Static Linear Load | 176.4 lb/in (31.5 kg/cm) |
| Vibration Frequency 1 | 42 Hz |
| Nominal Amplitude - High | 0.1 in (0.9 mm) |
| Vibration Frequency 2 | 50 Hz |
| Nominal Amplitude - Low | 0.1 in (0.5 mm) |
| Centrifugal Force - High | 26977.1 lb (120 kN) |
| Centrifugal Force - Low | 22256.1 lb (99 kN) |
