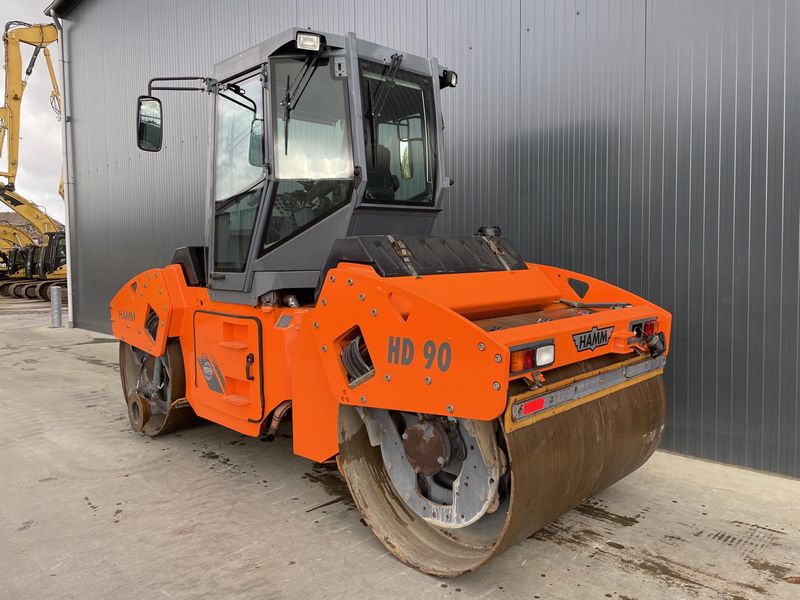

Hamm HD90K
Browse All Hamm or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 181.11 in (4600 mm) |
| Overall Width | 5.94 ft in (1810 mm) |
| Height To Top Of Cab | 10.01 ft in (3050 mm) |
| Wheelbase | 133.86 in (3400 mm) |
| Ground Clearance | 31.11 in (790 mm) |
| Maximum Width | 5741.47 ft in (1750 m) |
| Turning Radius - Inside | 13 ft in (3961 mm) |
Tyres
| Size Of Tyres, Rear | 11.00-20 |
| Width Over Tyres, Rear | 63.8 in (1620 mm) |
| Number Of Tyres, Rear | 4 |
Speeds
| Speed - Working Gear | 4.6 mph (7.4 km/h) |
| Speed - Transportation Gear | 9.2 mph (14.8 km/h) |
Engine
| Emissions Certification | EPA Tier 3 |
| Number Of Cylinders | 4 |
| Engine Make | DEUTZ |
| Engine Model | TCD 2012 L04 2V |
| Gross Power | 134.2 hp (100 kw) |
| Net Power | 134.2 hp (100 kw) |
| Power Measured @ | 2300 rpm |
Operational
| Operating Weight Cabin | 18926.7 lb (8585 kg) |
| Operating Weight Rops | 18342.5 lb (8320 kg) |
| Operating Weight | 24780 lb (11240 kg) |
| Fuel Capacity | 48.9 gal (185 L) |
| Water Spray Tank Fluid Capacity | 237.8 gal (900 L) |
| Steering Angle | 10 degrees |
Drum
| Drum Thickness | 0.7 in (17 mm) |
| Drum Type | smooth/non-divided |
| Drum Width | 66.2 in (1680 mm) |
| Drum Diameter | 47.3 in (1200 mm) |
| Static Linear Load | 154 lb/in (27.5 kg/cm) |
| Vibration Frequency 1 | 42 Hz |
| Nominal Amplitude - High | 0.1 in (0.7 mm) |
| Vibration Frequency 2 | 50 Hz |
| Centrifugal Force - High | 16860.7 lb (75 kN) |
