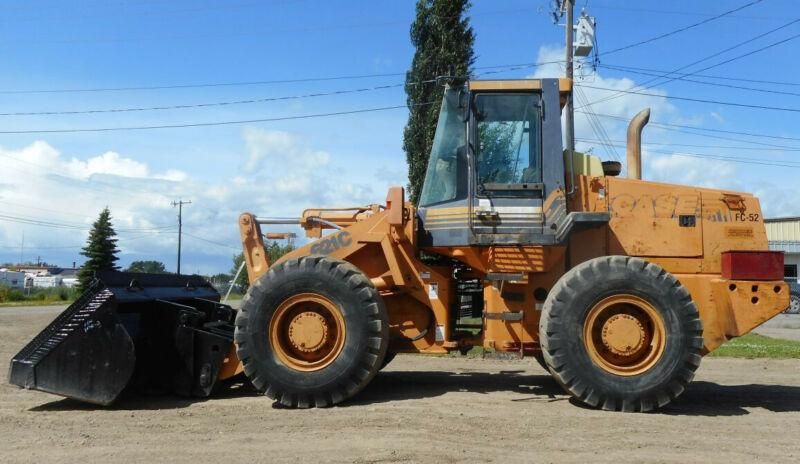

Case 621C
Browse All Case or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.55 ft in (2910 mm) |
| Bucket Capacity - Heaped | 2.32 yd3 (1.77 m3) |
| Bucket Capacity - Struck | 1.98 yd3 (1.51 m3) |
| Bucket Width | 8.34 ft in (2540 mm) |
| Breakout Force | 25100 lb (25100 -) |
Dimensions
| Ground Clearance | 1.4 ft in (425 mm) |
| Length With Bucket On Ground | 22.22 ft in (6770 mm) |
| Width Over Tires | 7.98 ft in (2430 mm) |
| Height To Top Of Cab | 10.7 ft in (3260 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Hinge Pin - Max Height | 12.14 ft in (3700 mm) |
| Reach At Max Lift And Dump | 3.15 ft in (958 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2239 |
| Engine Model | 6T-590 |
| Net Power | 130 hp (97 kw) |
| Gross Power | 139 hp (103.7 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 413 lb ft (560 Nm) |
| Displacement | 359 cu in (5.9 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged |
| Torque Rise | 31 % |
Operational
| Operating Weight | 26713.5 lb (12117 kg) |
| Fuel Capacity | 51 gal (193 L) |
| Hydraulic System Fluid Capacity | 40.5 gal (153.3 L) |
| Engine Oil Fluid Capacity | 4 gal (15.1 L) |
| Cooling System Fluid Capacity | 7.1 gal (26.5 L) |
| Transmission Fluid Capacity | 2 gal (7.4 L) |
| Front Axle/Diff Fluid Capacity | 5.5 gal (20.8 L) |
| Rear Axle/Diff Fluid Capacity | 5.5 gal (20.8 L) |
| Static Tipping Weight | 20697 lb (9388 kg) |
| Turning Radius | 17.1 ft in (5190 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 65 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5-25 L3 |
Transmission
| Transmission Type | 4F/3R proportional w/ electronic control module torque sensing autoshift/manual shift and modulation |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.3 mph (37.5 km/h) |
| Max Speed - Reverse | 15.5 mph (25 km/h) |
Hydraulic System
| Relief Valve Setting | 2250 psi (107.8 kPa) |
| Pump Flow Capacity | 18.6 gal/min (70.5 L/min) |
| Raise Time | 5.4 sec |
| Dump Time | 1.5 sec |
| Lower Time | 5 sec |
| Pump Type | dual, vane-type tandem |
