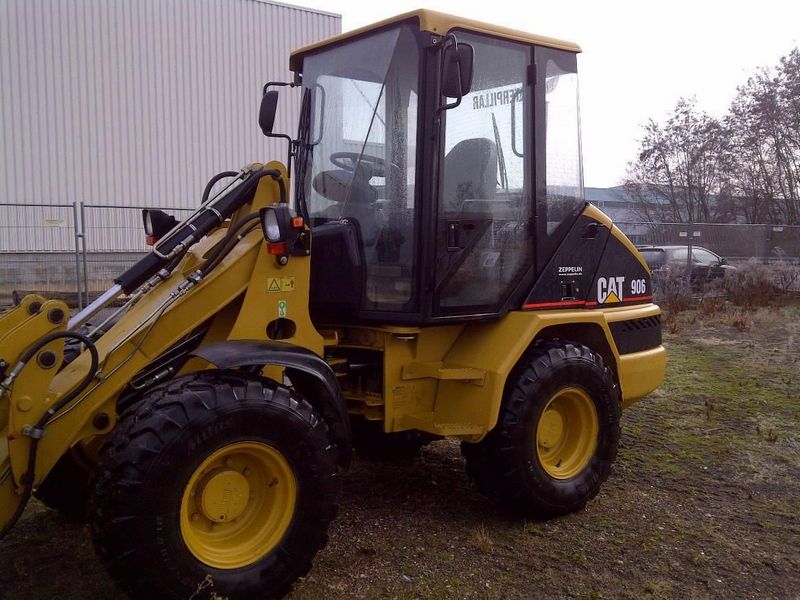

Caterpillar 906
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 7.95 ft in (2425 mm) |
| Bucket Capacity - Heaped | 0.8 yd3 (0.6 m3) |
| Bucket Width | 6.17 ft in (1870 mm) |
| Breakout Force | 10340 lb (46 kN) |
Dimensions
| Length With Bucket On Ground | 16.54 ft in (5040 mm) |
| Width Over Tires | 6.14 ft in (1870 mm) |
| Height To Top Of Cab | 8.8 ft in (2680 mm) |
| Wheelbase | 6.5 ft in (2000 mm) |
| Hinge Pin - Max Height | 10.25 ft in (3135 mm) |
| Reach At Max Lift And Dump | 2.6 ft in (790 mm) |
| Tread Width | 54.96 in (1395.99 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3044C |
| Net Power | 68 hp (50.8 kw) |
| Gross Power | 75 hp (56 kw) |
| Power Measured @ | 2600 rpm |
| Iso 9249 Rating | 71 hp (53 kw) |
| Eec 80/1269 Rating | 71 hp (53 kw) |
| Sae J1349 Rating | 71 hp (53 kw) |
Operational
| Operating Weight | 10912 lb (4960 kg) |
| Fuel Capacity | 19.6 gal (74 L) |
| Hydraulic System Fluid Capacity | 17.5 gal (66 L) |
| Engine Oil Fluid Capacity | 2.6 gal (10 L) |
| Cooling System Fluid Capacity | 5.5 gal (21 L) |
| Transmission Fluid Capacity | 2.6 gal (10 L) |
| Static Tipping Weight | 7546 lb (3430 kg) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 12.5x18 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12 mph (20 km/h) |
| Max Speed - Reverse | 12 mph (20 km/h) |
Weights
| Operating Weight | 10912 lb (4949.7 kg) |
Buckets
| Bucket Width | 6.2 ft in (1.9 m) |
Hydraulic System
| Relief Valve Setting | 3408.4 psi (23500 kPa) |
| Pump Flow Capacity | 18 gal/min (68 L/min) |
| Raise Time | 4.5 sec |
| Dump Time | 1.5 sec |
| Lower Time | 3.2 sec |
| Pump Type | Gear |
| Hydraulic Cycle Time - Dump | 1.5 |
| Hydraulic Cycle Time - Lift | 4.5 |
| Main Relief | 3400 psi |
| Hydraulic Cycle Time - Lower, Float | 3.2 |
| 3rd Valve Flow | 17.7 gal/min |
| Pressure Flow At 2,600 Rpm And 70 Bar (1,000 Psi) | 15.9 gal/min |
Operating Specifications
| Breakout Force | 10340 lb (4690.2 kg) |
| Rated Bucket Capacity | 1.1 yd3 (0.8 m3) |
| Dump Height At Full Lift | 8 ft in (2.5 m) |
| Articulation | 40 degrees |
| Oscillation +/- | 11 degrees |
| Full Turn Static Tipping Load - Bucket | 6666 lb (3023.7 kg) |
| Rack Back - Transport Position | 53 degrees |
| Rated Operating Load At Full Turn - Bucket | 3333 lb (1511.9 kg) |
| Hydraulic Lift Capacity | 9100 lb (4127.7 kg) |
| Straight Tipping Load - Bucket | 7546 lb (3422.9 kg) |
| Reach - Without Teeth | 2.8 ft in (0.9 m) |
| Rated Operating Load At Full Turn - Forks | 4433 lb (2010.8 kg) |
| Full Turn Static Tipping Load - Forks | 5500 lb (2494.8 kg) |
Service Refill Capacities
| Cooling System | 5.5 gal (20.9 L) |
| Fuel Tank | 19.6 gal (74.2 L) |
| Hydraulic System | 17.5 gal (66.3 L) |
| Engine Oil | 2.6 gal (9.9 L) |
Cab
| Rops | meets the following criteria: SAE J1040 MAY94, ISO 3471-1:1986 |
| Fops | meets the following criteria: SAE J231 JAN81, ISO 3449:1992 |
| Sound | Sound level is below 75 dB(A) |
Maximum Material Densities
| General Purpose Bucket - 0.6 M3 (0.8 Yd3) | 3000 lb/yd |
| Multi Purpose Bucket - 0.6 M3 (0.8 Yd3) | 3000 lb/yd |
| Light Material - Bucket 1.0 M3 (1.3 Yd3) | 1950 lb/yd |
| Side Dump Bucket | 3000 lb/yd |
| High Dump Bucket - 0.7 M3 (0.8 Yd3) | 3200 lb/yd |
| Stone Sieve Bucket - 0.6 M3 (0.8 Yd3) | 3300 lb/yd |
Engine Dimensions
| Bore | 3.7 in (94 mm) |
| Stroke | 4.8 in (119.9 mm) |
Power Train, Axles And Brakes
| Transmission Type | Closed-loop, two-speed hydrostatic single-path transmission. |
| Maximum Travel Speeds - With 12.5-18 Tires, Forward And Reverse, Low | 4 mph (6.5 km/h) |
| Maximum Travel Speeds - Forward And Reverse, High | 12 mph (19.4 km/h) |
| Axle And Final Drives | fixed front axle with limited slip differential and planetary ge |
| Service And Parking Brake | Are combined in a single, dry-disc driveline brake |
| Brake Standards | Brake meets ISO 3450:1996 |
