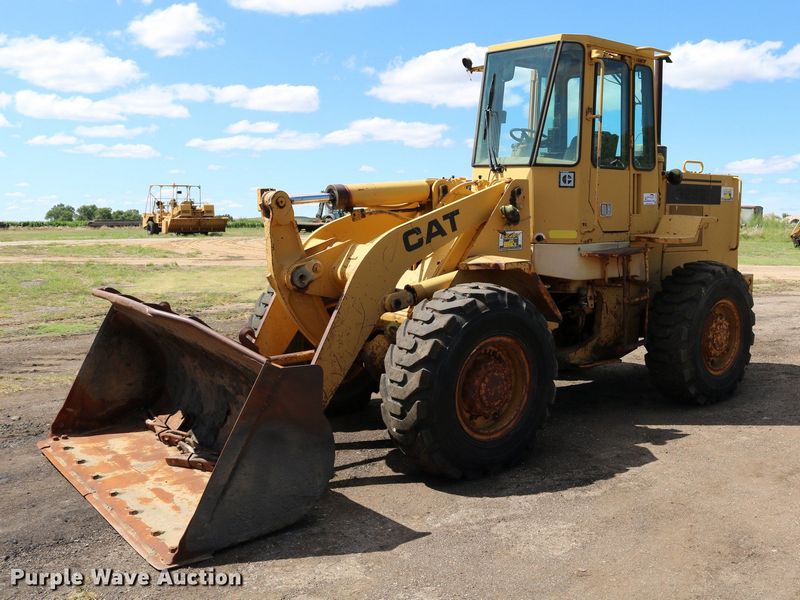

Caterpillar 926E
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.04 ft in (2755 mm) |
| Bucket Capacity - Heaped | 2.23 yd3 (1.7 m3) |
| Bucket Capacity - Struck | 1.9 yd3 (1.45 m3) |
| Bucket Width | 7.86 ft in (2395 mm) |
| Breakout Force | 22143 lb (22143 -) |
Dimensions
| Ground Clearance | 1.12 ft in (341 mm) |
| Length With Bucket On Ground | 21.83 ft in (6652 mm) |
| Width Over Tires | 7.65 ft in (2330 mm) |
| Height To Top Of Cab | 10.54 ft in (3210 mm) |
| Wheelbase | 9.42 ft in (2870 mm) |
| Hinge Pin - Max Height | 11.95 ft in (3640 mm) |
| Reach At Max Lift And Dump | 3.3 ft in (1003 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3204 |
| Gross Power | 110 hp (82 kw) |
| Displacement | 317.4 cu in (5.2 L) |
Operational
| Operating Weight | 20794.1 lb (9432 kg) |
| Fuel Capacity | 39.7 gal (150 L) |
| Hydraulic System Fluid Capacity | 24.4 gal (92 L) |
| Static Tipping Weight | 14945.2 lb (6779 kg) |
| Turning Radius | 18.4 ft in (5600 mm) |
| Tire Size | 17.5-25 12PR |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.3 mph (34.2 km/h) |
| Max Speed - Reverse | 22.9 mph (36.8 km/h) |
Hydraulic System
| Raise Time | 6 sec |
| Dump Time | 1.7 sec |
| Lower Time | 3.6 sec |
