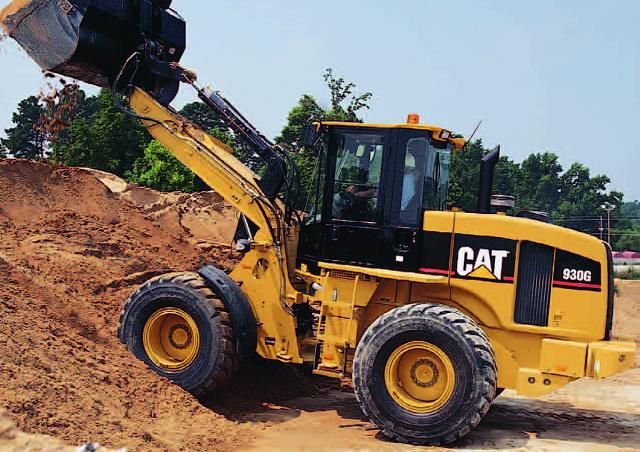

Caterpillar 930
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.32 ft in (2840 mm) |
| Bucket Capacity - Heaped | 1.7 yd3 (1.3 m3) |
| Bucket Width | 8.01 ft in (2440 mm) |
| Breakout Force | 19190 lb (19190 -) |
Dimensions
| Ground Clearance | 1.15 ft in (348 mm) |
| Length With Bucket On Ground | 19.85 ft in (6050 mm) |
| Width Over Tires | 7.85 ft in (2390 mm) |
| Height To Top Of Cab | 10.33 ft in (3148.59 mm) |
| Hinge Pin - Max Height | 12.67 ft in (3860 mm) |
| Reach At Max Lift And Dump | 4.43 ft in (1350 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3304 |
| Net Power | 100 hp (74.6 kw) |
| Displacement | 427.2 cu in (7 L) |
Operational
| Operating Weight | 21208.5 lb (9620 kg) |
| Fuel Capacity | 39.1 gal (148 L) |
| Hydraulic System Fluid Capacity | 19.6 gal (74 L) |
| Static Tipping Weight | 15807.2 lb (7170 kg) |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 27.5 mph (44.2 km/h) |
| Max Speed - Reverse | 14.5 mph (23.3 km/h) |
Hydraulic System
| Raise Time | 6.4 sec |
| Dump Time | 1.8 sec |
| Lower Time | 3.7 sec |
